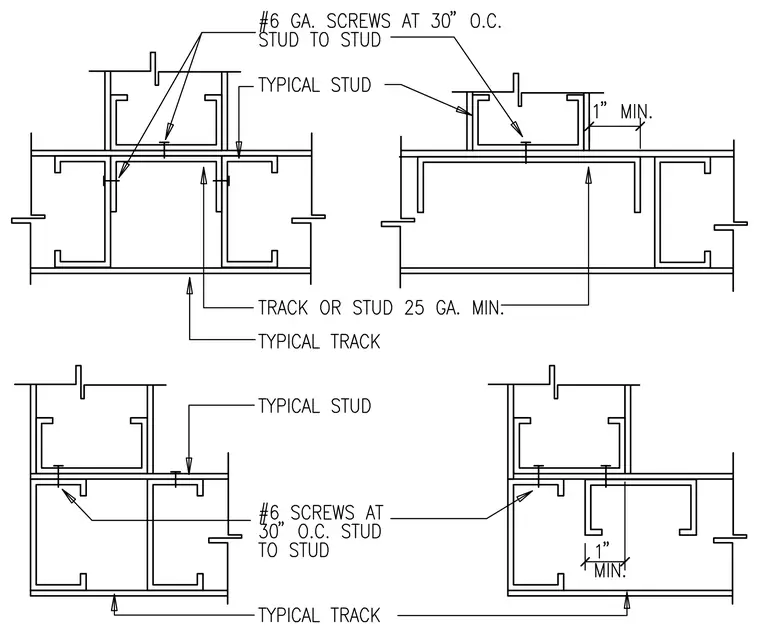

Cold-formed steel stud intersections and corner junctions comprise typical studs and tracks configured with a minimum twenty-five gauge thickness. Connections are secured using number six gauge screws spaced at thirty inches on centre for stud-to-stud fastening. Specific corner configurations maintain a one-inch minimum clearance dimension from the framing edge. Multiple intersecting wall conditions apply for light-gauge steel framing partitions.
