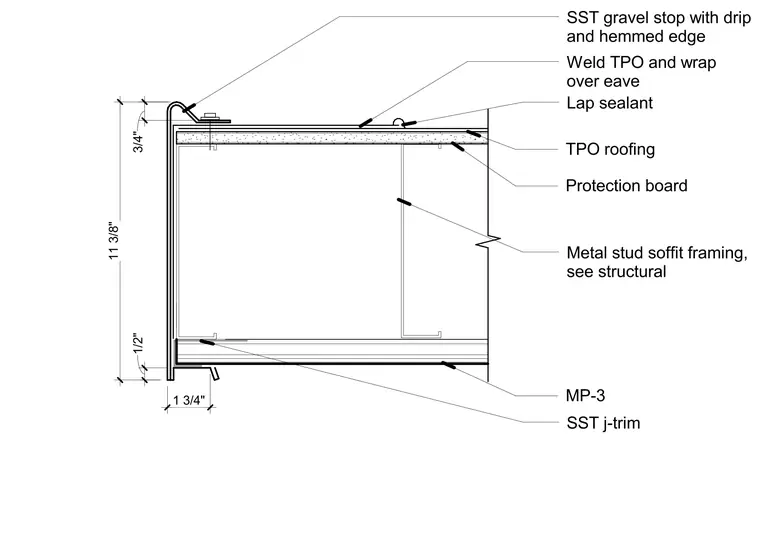

A stainless steel gravel stop with a drip and hemmed edge terminates the roof edge, measuring eleven and three-eighths inches vertically with a one-and-three-quarter-inch horizontal flange and a half-inch lower drip. Thermoplastic polyolefin roofing is wrapped over the eave and welded, set over a protective board. Lap sealant is applied at membrane joints. Below, cold-formed metal stud soffit framing is finished with a stainless steel J-trim and metal panel MP-3.
1/2" 3/4" 1 3/4" 11 3/8" SST gravel stop with drip and hemmed edge TPO roofing Protection board Metal stud soffit framing, see structural MP-3 SST j-trim Lap sealant Weld TPO and wrap over eave
