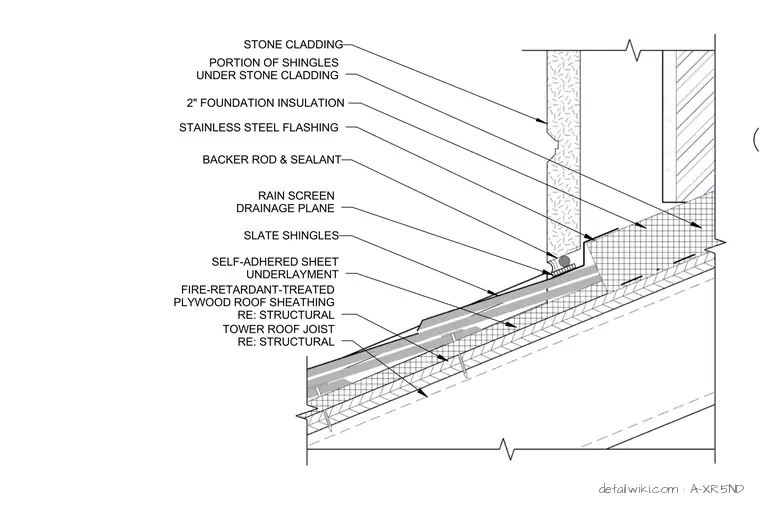

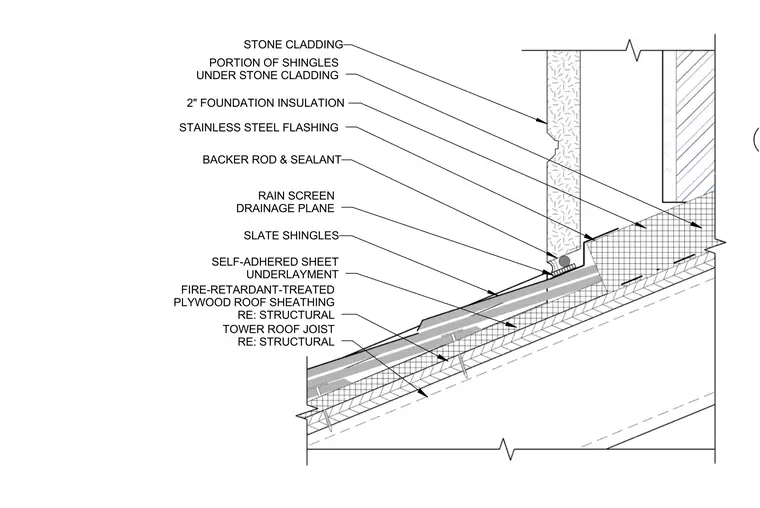

A-XR5ND — Roof Transition Detail @ Main Entry

Architectural · A-XR5ND

Roof Transition Detail @ Main Entry

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Steel Stainless Steel Timber / Wood Stone

Elements

Beams Facades / Cladding Roofs Foundations / Footings Waterproofing / Flashing Insulation Entrances

Text on the drawing

STONE CLADDING SLATE SHINGLES BACKER ROD & SEALANT PORTION OF SHINGLES UNDER STONE CLADDING FIRE-RETARDANT-TREATED PLYWOOD ROOF SHEATHING RE: STRUCTURAL RAIN SCREEN DRAINAGE PLANE STAINLESS STEEL FLASHING SELF-ADHERED SHEET UNDERLAYMENT 2" FOUNDATION INSULATION TOWER ROOF JOIST RE: STRUCTURAL

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
