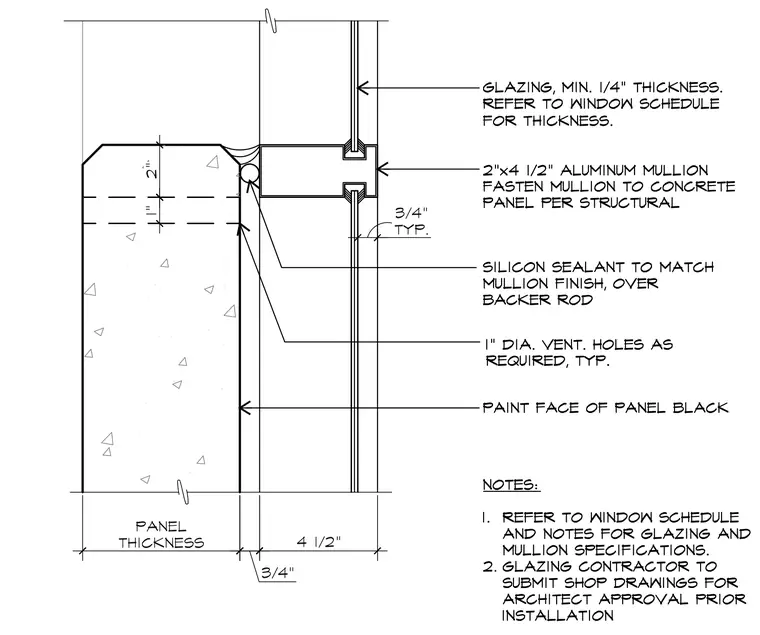

A minimum one-quarter-inch thick glazing panel is secured within a two-by-four-and-a-half-inch aluminum mullion fastened to the concrete panel per structural requirements. A silicone sealant matching the mullion finish is applied over a backer rod in the joint. One-inch diameter vent holes are provided as required typically. The face of the concrete panel is painted black.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
