Architectural · A-XQYH5

Mounting Height Detail - Bathrooms

Elements

About this detail

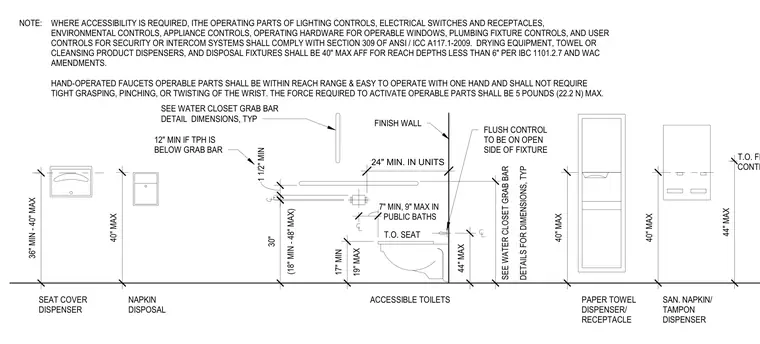

Accessible bathroom fixture and accessory mounting heights are detailed relative to finished floor and finish wall surfaces. Grab bars are positioned with a top of seat height of seventeen to nineteen inches, featuring a horizontal bar mounted seven to nine inches above the seat in public baths and a standard one and one-half inch clearance from the wall. Flush controls are located on the open side of the water closet fixture. Dispensers and receptacles including seat cover dispensers, napkin disposals, paper towel dispenser receptacles, and sanitary napkin or tampon dispensers are specified with maximum heights of forty to forty-four inches above the finished floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
