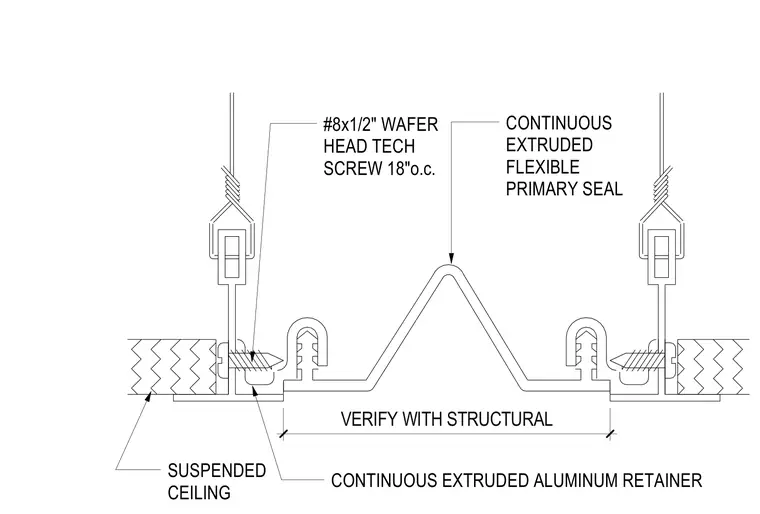

Continuous extruded aluminum retainers anchor the suspended ceiling assembly on each side of the seismic joint. A continuous extruded flexible primary seal bridges the gap between the retainers. Number 8 by 1/2-inch wafer head tech screws fasten the assembly at 18 inches on center, with the joint width verified with structural drawings.
CONTINUOUS EXTRUDED ALUMINUM RETAINER SUSPENDED CEILING CONTINUOUS EXTRUDED FLEXIBLE PRIMARY SEAL #8x1/2" WAFER HEAD TECH SCREW 18"o.c. VERIFY WITH STRUCTURAL
