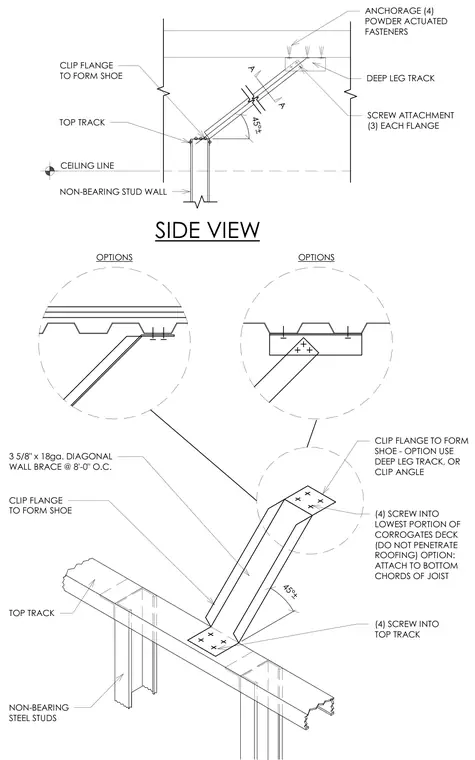

A diagonal wall brace connects to the top track of a non-bearing steel stud wall and extends upward at approximately forty-five degrees to anchorage above. A three-and-five-eighths-inch by eighteen-gauge diagonal wall brace is spaced at eight feet on center. Three screws attach each flange of the clip formed as a shoe at the top track. Four powder-actuated fasteners anchor the deep leg track overhead, with options for attachment directly into the lowest portion of corrugated metal deck without penetrating roofing, or to the bottom chords of joists. Four screws fasten the lower shoe to the top track of the stud wall.
45°± 45°± SCREW ATTACHMENT (3) EACH FLANGE CLIP FLANGE TO FORM SHOE A TOP TRACK CEILING LINE A SIDE VIEW NON-BEARING STUD WALL ANCHORAGE (4) POWDER ACTUATED FASTENERS CLIP FLANGE TO FORM SHOE - OPTION USE DEEP LEG TRACK, OR CLIP ANGLE (4) SCREW INTO LOWEST PORTION OF CORROGATES DECK (DO NOT PENETRATE ROOFING) OPTION: ATTACH TO BOTTOM CHORDS OF JOIST (4) SCREW INTO TOP TRACK NON-BEARING STEEL STUDS CLIP FLANGE TO FORM SHOE 3 5/8" x 18ga. DIAGONAL WALL BRACE @ 8'-0" O.C. TOP TRACK OPTIONS OPTIONS DEEP LEG TRACK
