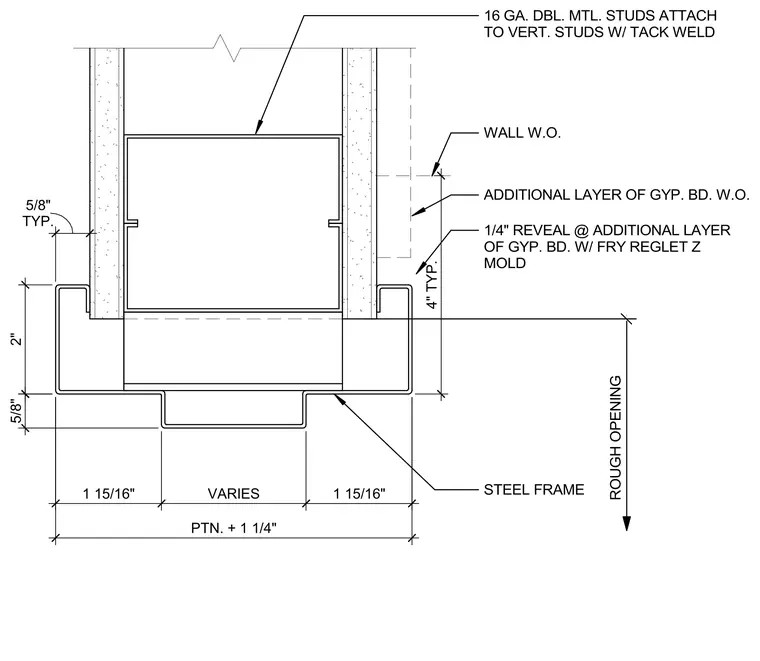

This wall opening detail features a steel frame constructed from sixteen gauge double metal studs attached to vertical studs with tack welds. The surrounding wall assembly incorporates an additional layer of gypsum board terminating in a one-quarter-inch reveal with a Fry Reglet Z-mold. Dimensions indicate standard five-eighths inch gypsum board thicknesses alongside varying rough opening dimensions.
WALL W.O. TYP. 5/8" 2" 5/8" 1 15/16" VARIES 1 15/16" PTN. + 1 1/4" ADDITIONAL LAYER OF GYP. BD. W.O. 1/4" REVEAL @ ADDITIONAL LAYER OF GYP. BD. W/ FRY REGLET Z MOLD 4" TYP. A ROUGH OPENING STEEL FRAME 16 GA. DBL. MTL. STUDS ATTACH TO VERT. STUDS W/ TACK WELD
