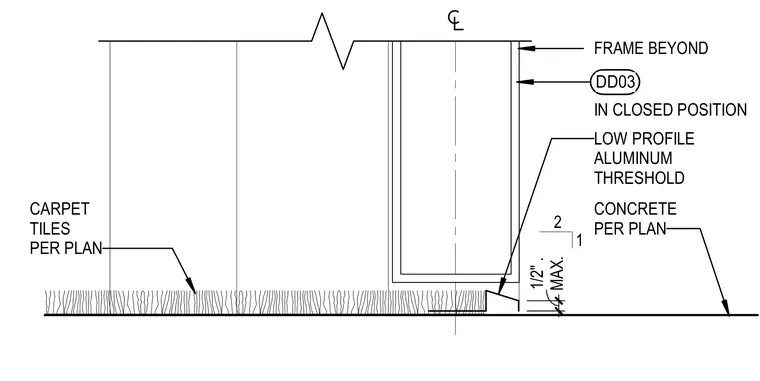

A low profile aluminum threshold sits above a concrete slab designed per plan, with carpet tiles installed up to the threshold on one side. The frame beyond is indicated in the closed position with a centerline reference. The maximum vertical clearance at the threshold is one-half inch, with a two-to-one slope profile.
LOW PROFILE ALUMINUM THRESHOLD IN CLOSED POSITION CONCRETE PER PLAN CARPET TILES PER PLAN 2 1 MAX. 1/2" . FRAME BEYOND DD03
