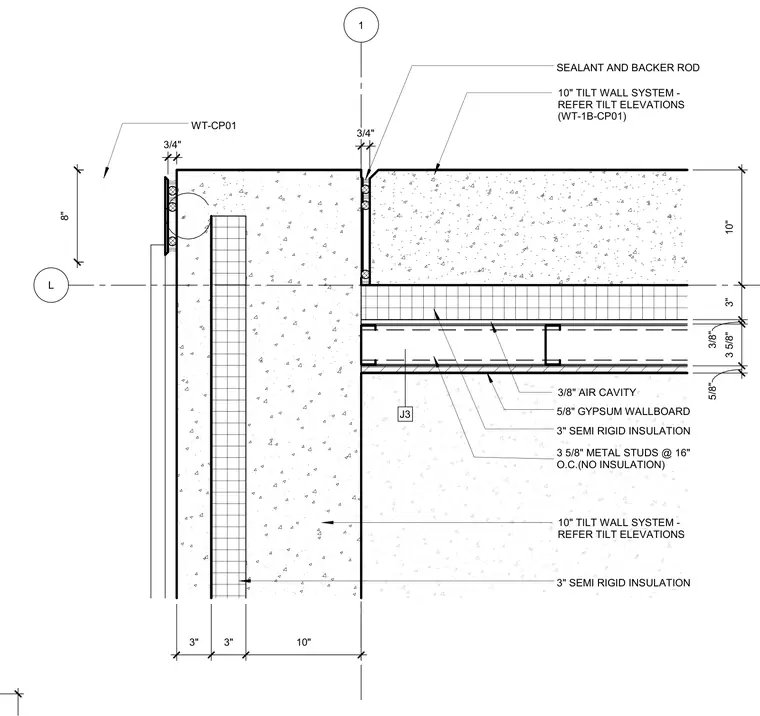

A ten-inch thick tilt-up concrete wall panel connects to a sandwich wall panel featuring an eight-inch concrete wythe, three-inch semi-rigid insulation, and a three-inch concrete backing layer. A three-quarter-inch joint space between the panels is sealed with backer rod and joint sealant. The interior assembly consists of three-and-five-eighths-inch metal studs spaced at sixteen inches on center, left uninsulated, with a three-eighths-inch air cavity and five-eighths-inch gypsum wallboard facing.
1 L 3" 3" 10" 10" 3" 3/8" 3 5/8" 5/8" 3" SEMI RIGID INSULATION 3 5/8" METAL STUDS @ 16" O.C.(NO INSULATION) 5/8" GYPSUM WALLBOARD 3/8" AIR CAVITY 10" TILT WALL SYSTEM - REFER TILT ELEVATIONS (WT-1B-CP01) SEALANT AND BACKER ROD 3/4" 10" TILT WALL SYSTEM - REFER TILT ELEVATIONS 3" SEMI RIGID INSULATION WT-CP01 8" 3/4" J3
