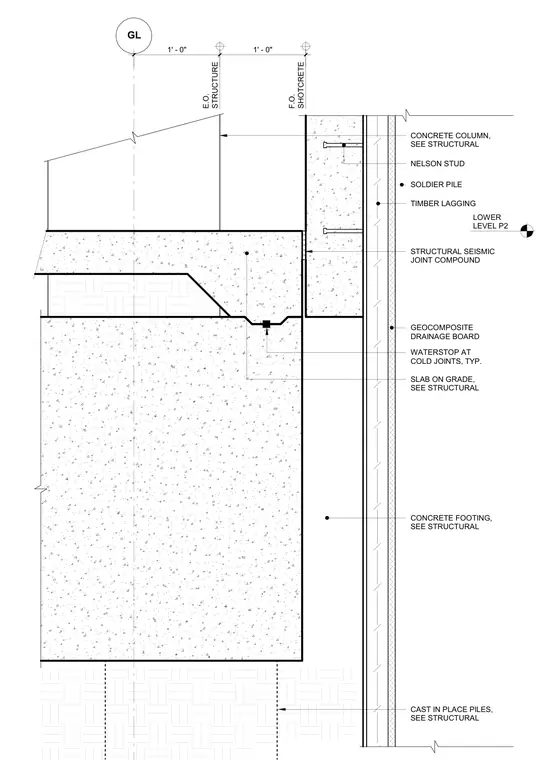

A cast-in-place concrete footing and slab on grade transition to an exterior shoring wall consisting of soldier piles and timber lagging. A structural seismic joint compound separates the concrete structure from the shotcrete-faced shoring assembly. A geocomposite drainage board runs vertically behind the shotcrete wall, while a waterstop is embedded at typical cold joints in the foundation. The soldier pile features Nelson studs embedded into the adjacent concrete column and shotcrete construction.
CONCRETE COLUMN, SEE STRUCTURAL E.O. STRUCTURE GL 1' - 0" 1' - 0" GEOCOMPOSITE DRAINAGE BOARD SOLDIER PILE NELSON STUD TIMBER LAGGING F.O. SHOTCRETE CONCRETE FOOTING, SEE STRUCTURAL SLAB ON GRADE, SEE STRUCTURAL LOWER LEVEL P2 WATERSTOP AT COLD JOINTS, TYP. CAST IN PLACE PILES, SEE STRUCTURAL STRUCTURAL SEISMIC JOINT COMPOUND
