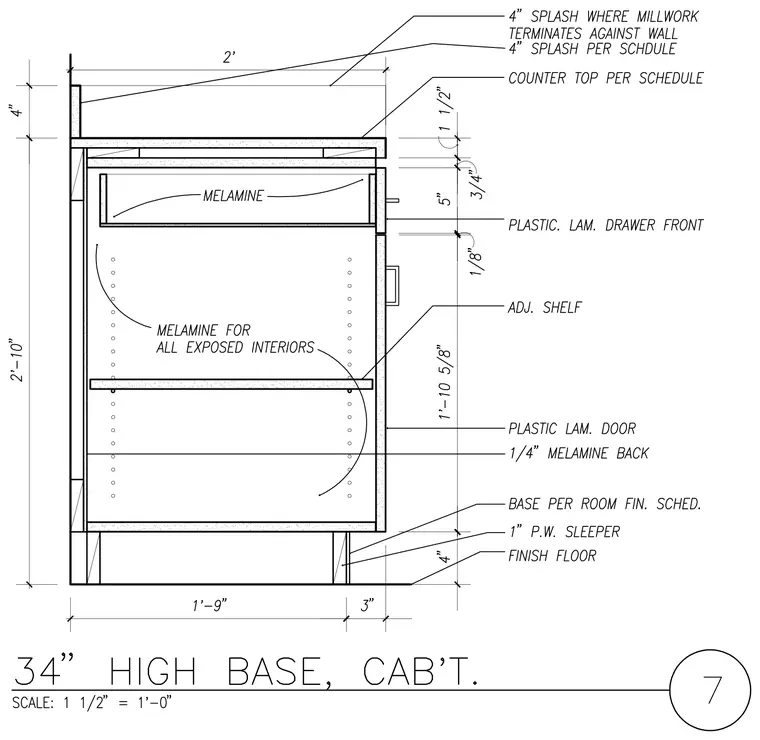

This base cabinet assembly stands 2'-10" high on a 4" plywood sleeper base and finish floor. The unit is constructed with melamine for all exposed interiors and a 1/4" melamine back, featuring an adjustable shelf and a plastic laminate door and drawer front below a countertop specified per schedule. A 4" splash is provided where millwork terminates against the wall, with a 4" splash per schedule. Overall depth dimensions include a 1'-9" main body with a 3" toe kick space.
