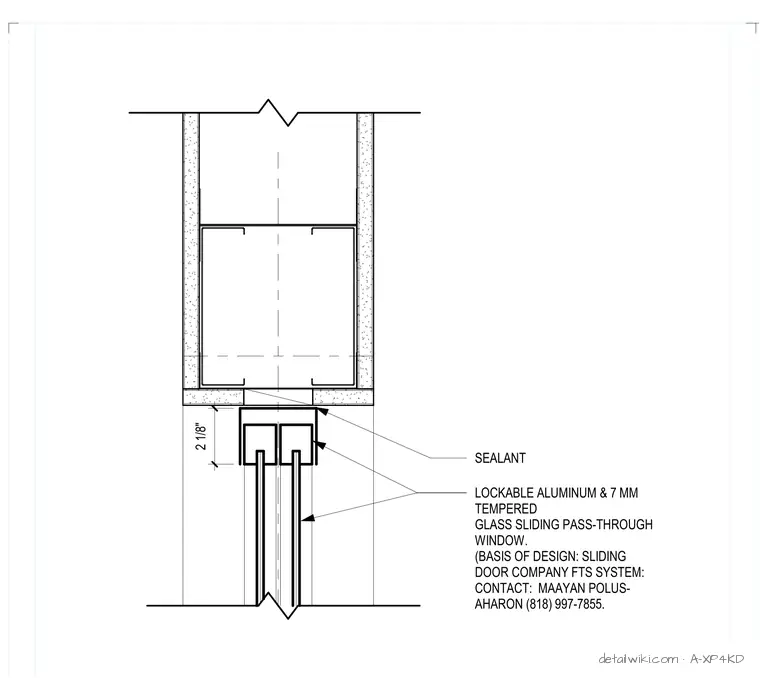

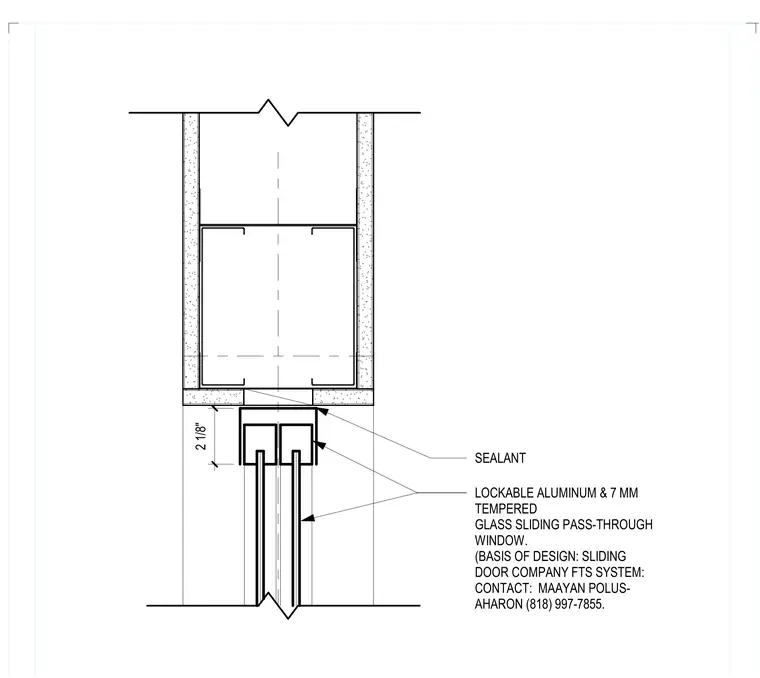

Lockable aluminum and seven millimeter tempered glass sliding pass-through window head condition. The window assembly mounts within a framed wall opening, with a sealant bead applied at the interface between the window head track and the wall finish. The assembly utilizes the Sliding Door Company FTS system. The vertical dimension from the top of the window track to the bottom of the wall header is two and one-eighth inches.
