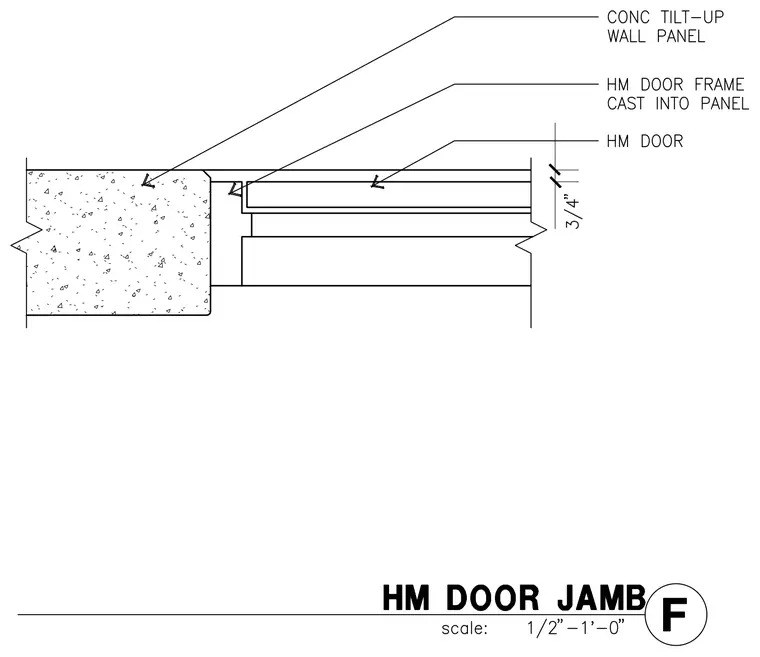

A hollow metal door frame is cast directly into a concrete tilt-up wall panel, accommodating a hollow metal door with a 3/4 inch clearance dimension. The concrete wall panel provides the structural reveal and opening for the door assembly.
