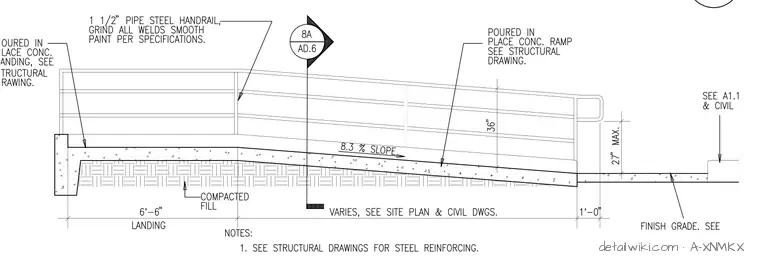

The assembly consists of a poured-in-place concrete ramp set at an 8.3 percent slope over compacted fill, transitioning to a concrete landing. A 1 1/2-inch diameter steel pipe handrail is mounted to the ramp, requiring all welds to be ground smooth and painted per specifications. The ramp height is dimensioned at 36 inches, with a maximum guardrail height of 27 inches. Structural reinforcing for the concrete is referenced to the structural drawings, while finish grade and site conditions are coordinated with civil drawings.
