Canopy and Opening Vertical Section Details

Elements

About this detail

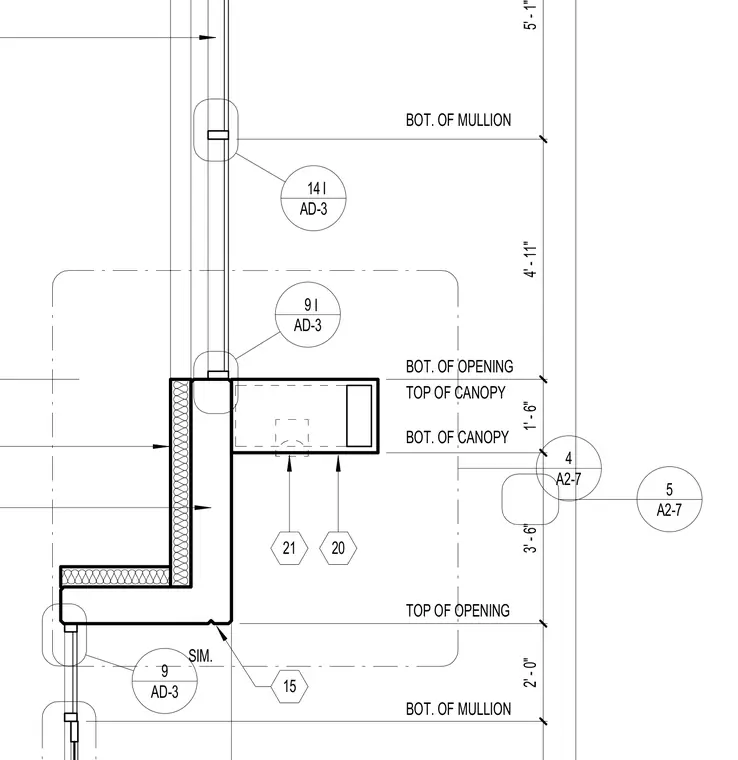

A vertical wall section relates building canopy and window openings with vertical height dimensions including five feet one inch, four feet eleven inches, one foot six inches, three feet six inches, and two feet zero inches. Reference callout bubbles identify mullion locations, canopy top and bottom elevations, and opening transitions across sheets AD-3 and A2-7. Key vertical datums indicate the bottom of mullion, top of opening, top of canopy, and bottom of canopy.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
