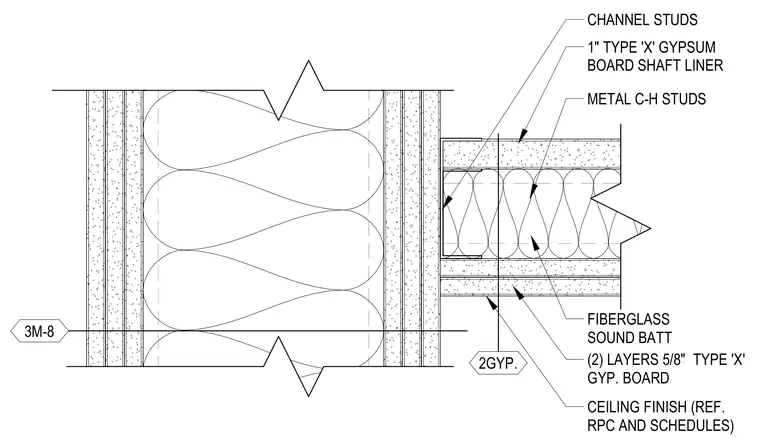

A metal stud partition intersects a rated wall assembly, utilizing metal C-H studs and channel studs to frame the connection. The bulkhead incorporates a one-inch Type X gypsum board shaft liner and fiberglass sound batts within the stud cavity for acoustic and fire performance. The intersecting wall and ceiling surfaces are finished with two layers of five-eighths-inch Type X gypsum board on each side. Channel studs anchor the partition framing directly to the adjacent multi-layer wall assembly.
FIBERGLASS SOUND BATT 1" TYPE 'X' GYPSUM BOARD SHAFT LINER METAL C-H STUDS (2) LAYERS 5/8" TYPE 'X' GYP. BOARD CEILING FINISH (REF. RPC AND SCHEDULES) CHANNEL STUDS 3M-8 2GYP.
