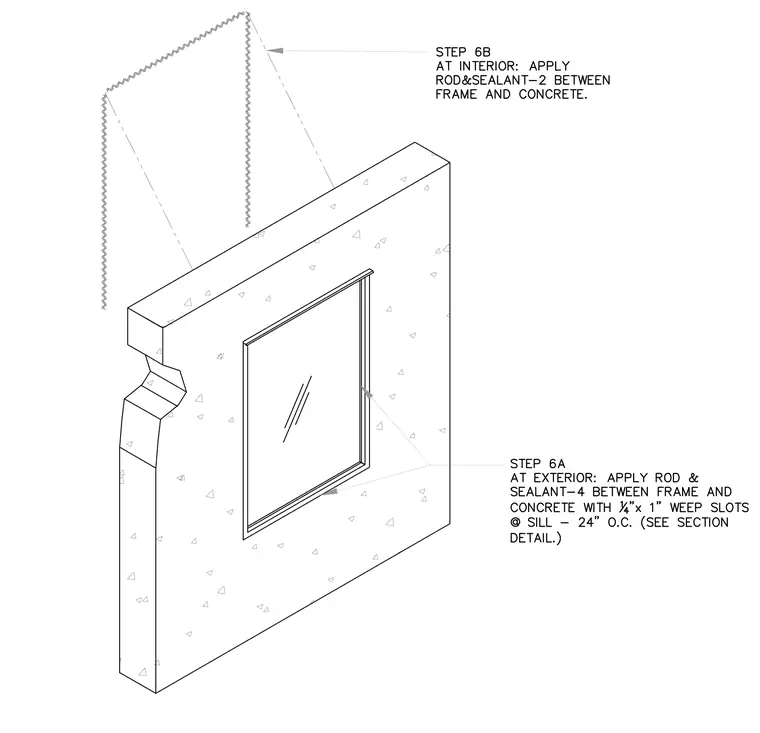

At the exterior, apply backing rod and sealant between the storefront frame and the concrete, complete with one-quarter inch by one-inch weep slots at the sill spaced twenty-four inches on center as indicated in the section detail. At the interior, apply backing rod and sealant between the frame and the concrete.
