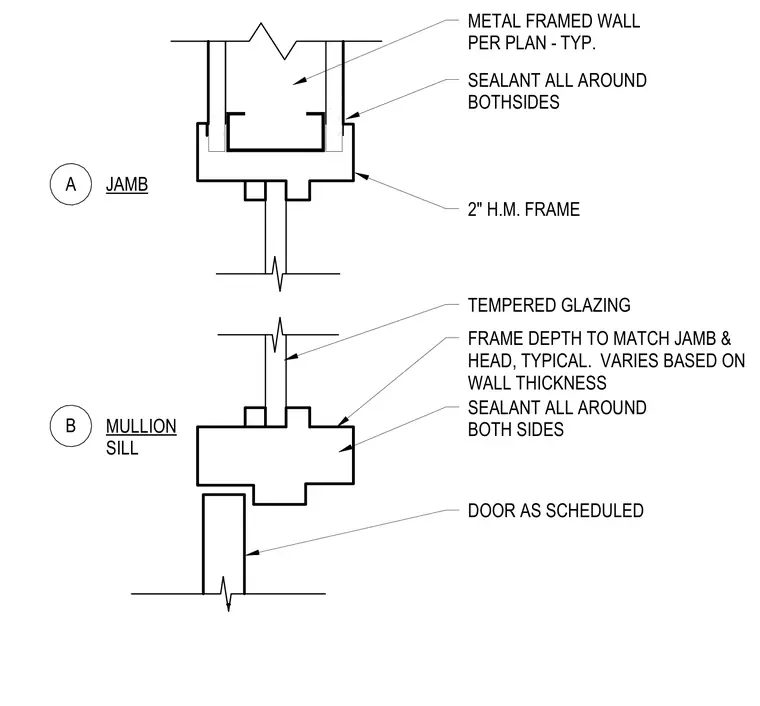

An interior hollow metal frame is set into a metal framed wall per plan, with frame depth varying based on wall thickness to match the jamb and head. Tempered glazing is installed within the frame with sealant applied all around on both sides at the jamb, mullion, and sill conditions. A door is positioned adjacent as scheduled.
SEALANT ALL AROUND BOTH SIDES FRAME DEPTH TO MATCH JAMB & HEAD, TYPICAL. VARIES BASED ON WALL THICKNESS TEMPERED GLAZING 2" H.M. FRAME SEALANT ALL AROUND BOTHSIDES METAL FRAMED WALL PER PLAN - TYP. MULLION SILL JAMB A B DOOR AS SCHEDULED
