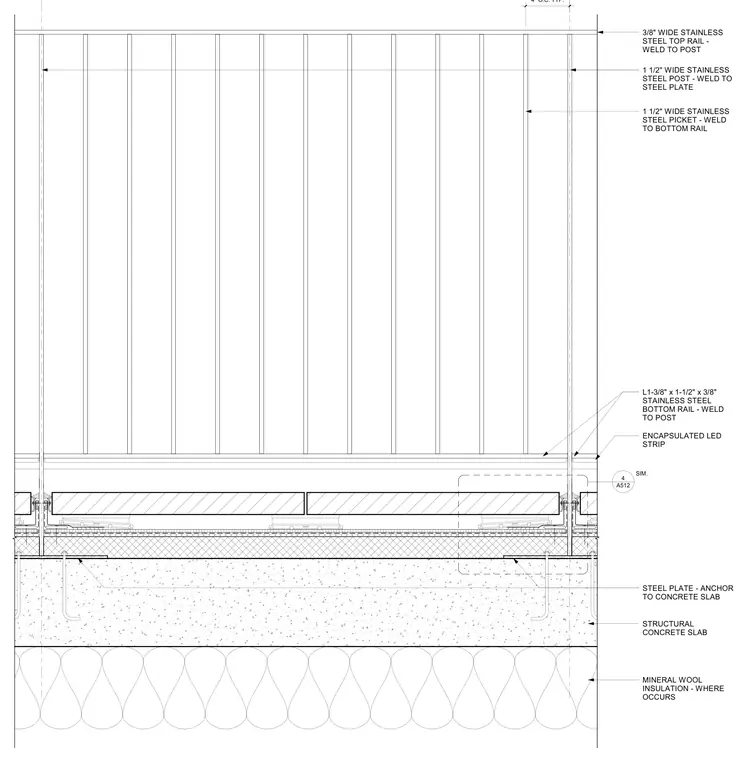

A 1 1/2-inch-wide stainless steel post is welded to a steel plate anchored into the structural concrete slab. The assembly features a 3/8-inch-wide stainless steel top rail and an L1-3/8" x 1-1/2" x 3/8" stainless steel bottom rail welded to the post, along with 1 1/2-inch-wide stainless steel pickets spaced at 4 inches on center. An encapsulated LED strip is integrated near the bottom rail. Mineral wool insulation is provided beneath the concrete slab where specified.
L1-3/8" x 1-1/2" x 3/8" STAINLESS STEEL BOTTOM RAIL - WELD TO POST STEEL PLATE - ANCHOR TO CONCRETE SLAB ENCAPSULATED LED STRIP 3/8" WIDE STAINLESS STEEL TOP RAIL - WELD TO POST 1 1/2" WIDE STAINLESS STEEL POST - WELD TO STEEL PLATE 1 1/2" WIDE STAINLESS STEEL PICKET - WELD TO BOTTOM RAIL 4" O.C. TYP. STRUCTURAL CONCRETE SLAB MINERAL WOOL INSULATION - WHERE OCCURS A512 4 SIM.
