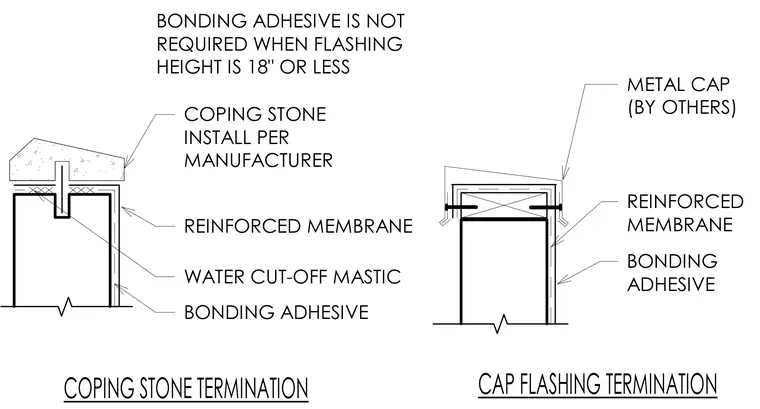

Reinforced membrane waterproofing is applied to the parapet wall using bonding adhesive with water cut-off mastic at terminations, omitting the adhesive when flashing height is eighteen inches or less. A coping stone is installed per manufacturer instructions atop the wall, while an alternate detail shows a metal cap provided by others secured over the membrane assembly.
BONDING ADHESIVE IS NOT REQUIRED WHEN FLASHING HEIGHT IS 18" OR LESS COPING STONE INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER CUT-OFF MASTIC BONDING ADHESIVE METAL CAP (BY OTHERS) REINFORCED MEMBRANE BONDING ADHESIVE COPING STONE TERMINATION CAP FLASHING TERMINATION
