Base Detail - Tile to Terrazzo Base

Materials

Concrete Steel Stainless Steel Masonry / CMU Aluminum Metal (misc.)

Elements

Partitions Floors / Slabs Waterproofing / Flashing Site / Paving

About this detail

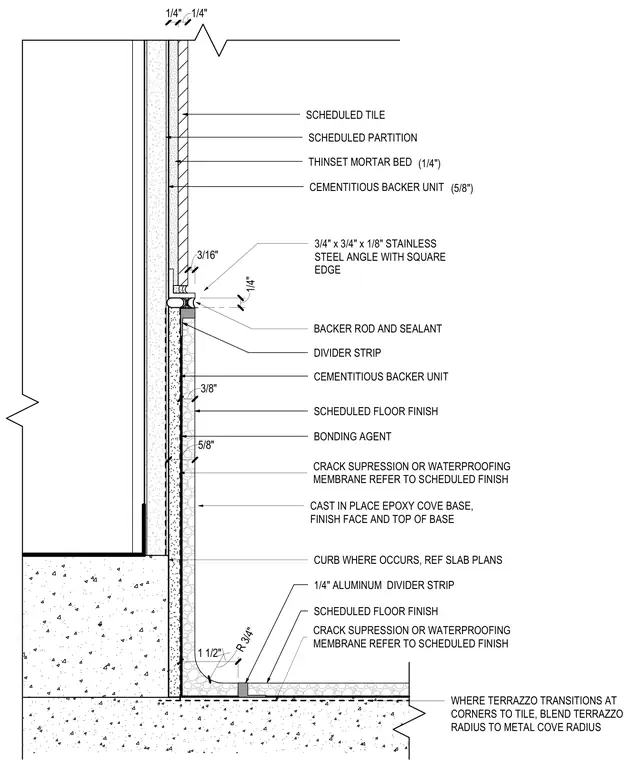

A scheduled partition with five-eighths-inch cementitious backer unit and scheduled tile set in a one-quarter-inch thinset mortar bed forms the wall assembly, transitioning to a cast-in-place epoxy terrazzo base. A three-quarter-inch by three-quarter-inch by one-eighth-inch stainless steel angle with a square edge is installed at the top of the terrazzo base, finished with backer rod and sealant. The terrazzo base incorporates a bonding agent, a crack suppression or waterproofing membrane, and a three-eighths-inch scheduled floor finish over a five-eighths-inch curb where indicated on slab plans. An aluminum divider strip is placed where the terrazzo transitions at corners to tile, blending the terrazzo radius to the metal cove radius. A one-and-one-half-inch radius three-quarter-inch cast-in-place epoxy cove base finishes the face and top of the base. Additional scheduled floor finish and waterproofing membrane extend across the floor slab, separated by a one-quarter-inch aluminum divider strip.
