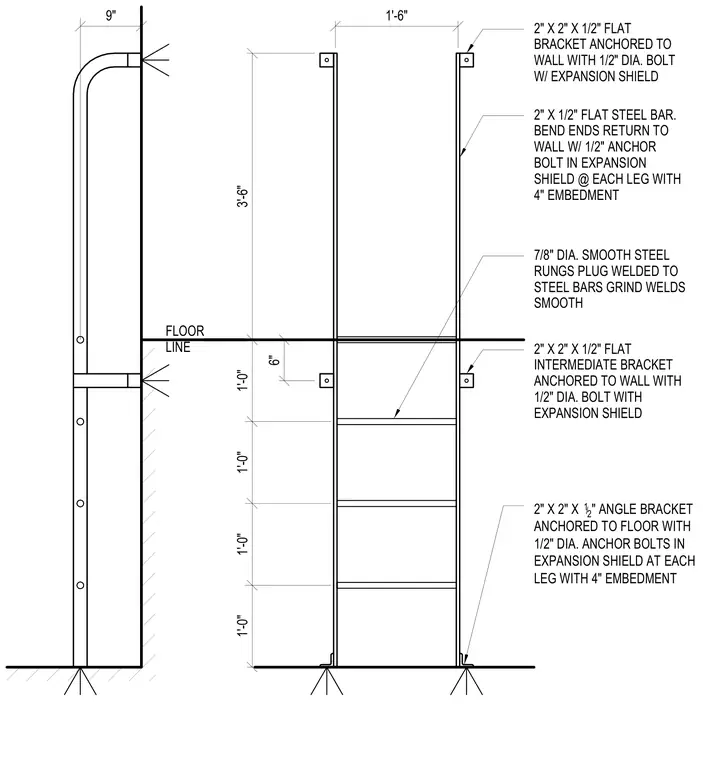

A steel pit ladder assembly features 2-inch by one-half-inch flat steel side rails with bent returns anchored to the wall using one-half-inch diameter anchor bolts in expansion shields with 4-inch embedment. Seven-eighths-inch diameter smooth steel rungs are plug welded to the flat steel bars and ground smooth. The top of the ladder is secured with a 2-inch by 2-inch by one-half-inch flat bracket, while intermediate points feature a similar flat intermediate bracket anchored to the wall. The base of the ladder rests on the floor line, secured by a 2-inch by 2-inch by one-half-inch angle bracket anchored with one-half-inch diameter anchor bolts in expansion shields at each leg.
1'-6" 9" 3'-6" 1'-0" 1'-0" 1'-0" 1'-0" 6" 2" X 2" X 1/2" FLAT BRACKET ANCHORED TO WALL WITH 1/2" DIA. BOLT W/ EXPANSION SHIELD 2" X 1/2" FLAT STEEL BAR. BEND ENDS RETURN TO WALL W/ 1/2" ANCHOR BOLT IN EXPANSION SHIELD @ EACH LEG WITH 4" EMBEDMENT 7/8" DIA. SMOOTH STEEL RUNGS PLUG WELDED TO STEEL BARS GRIND WELDS SMOOTH 2" X 2" X 1 /2 " ANGLE BRACKET ANCHORED TO FLOOR WITH 1/2" DIA. ANCHOR BOLTS IN EXPANSION SHIELD AT EACH LEG WITH 4" EMBEDMENT FLOOR LINE 2" X 2" X 1/2" FLAT INTERMEDIATE BRACKET ANCHORED TO WALL WITH 1/2" DIA. BOLT WITH EXPANSION SHIELD
