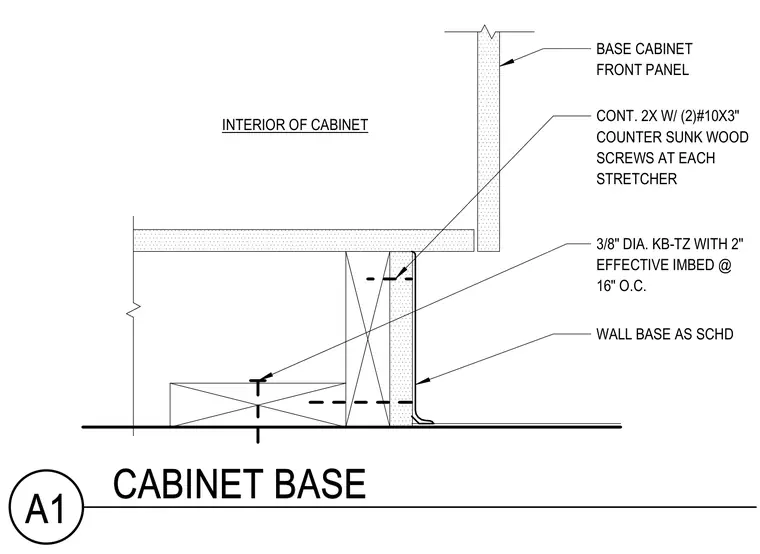

A continuous wood framing member supports the cabinet base and is secured with three-eighths-inch diameter KB-TZ wedge anchors featuring a two-inch effective embedment at sixteen inches on center. The base cabinet front panel attaches to the framing using continuous two-by wood members fastened with two number ten by three-inch countersunk wood screws at each stretcher. A finish wall base is installed at the bottom of the assembly per schedule.
BASE CABINET FRONT PANEL CONT. 2X W/ (2)#10X3" COUNTER SUNK WOOD SCREWS AT EACH STRETCHER WALL BASE AS SCHD 3/8" DIA. KB-TZ WITH 2" EFFECTIVE IMBED @ 16" O.C. INTERIOR OF CABINET A1 CABINET BASE
