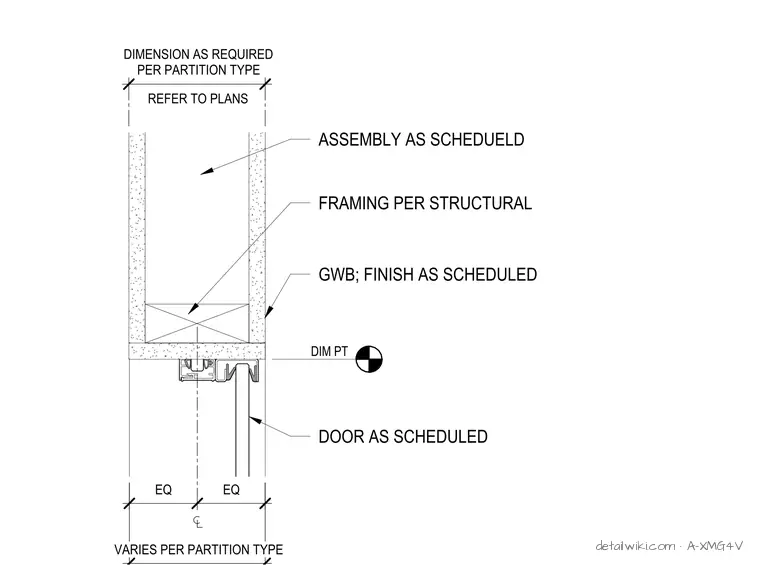

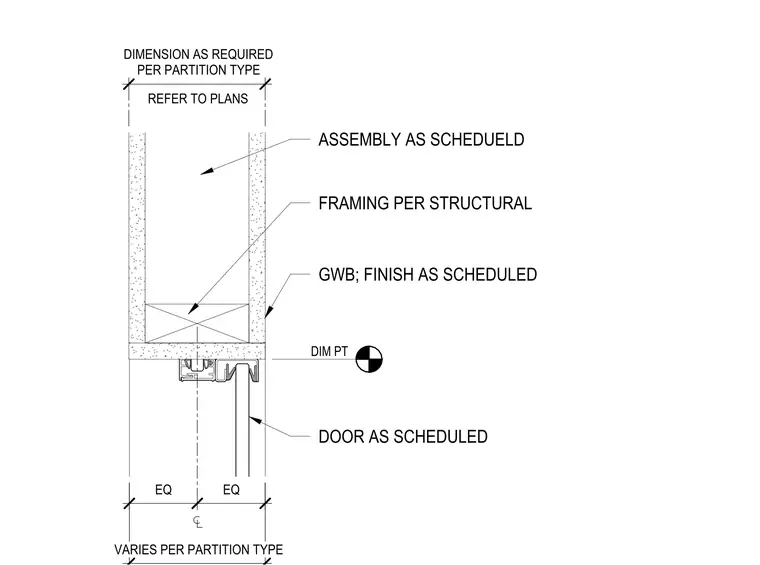

Acoustic door jamb condition integrated into a partition wall. Wall framing follows structural requirements, with gypsum wallboard finish applied as scheduled. Door assembly position relative to the partition centerline varies per specific partition type. Assembly includes a dimension point for layout and requires coordination with door and partition schedules.
