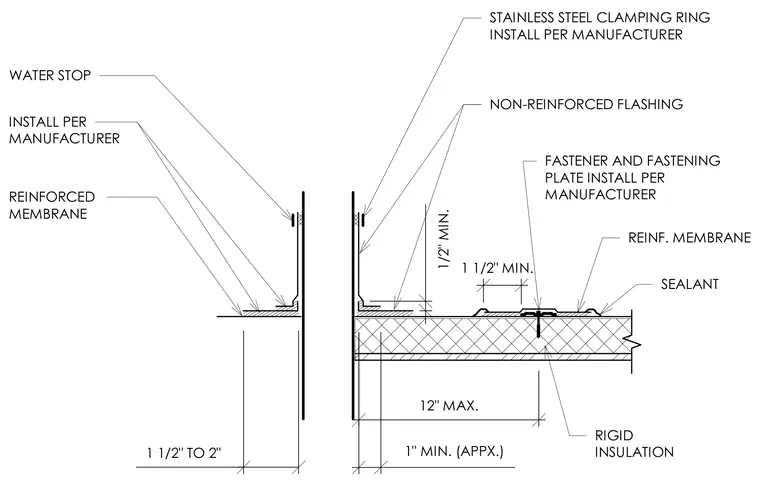

A field-fabricated pipe penetration flashing assembly installed over rigid insulation and a base deck. A reinforced membrane extends up the vertical pipe penetration with a water stop at the top and a stainless steel clamping ring installed per the manufacturer's recommendations. A non-reinforced flashing piece laps the base, secured with mechanical fasteners and fastening plates spaced according to manufacturer instructions. Sealant is applied at terminations, and specified dimensional clearances include a one-half inch minimum vertical lap and a twelve-inch maximum spacing for fasteners.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION
