Architectural · A-XMBGS

Fire Extinguisher Cabinet

Materials

Elements

Partitions Insulation Millwork / Casework Roof / Floor Openings

About this detail

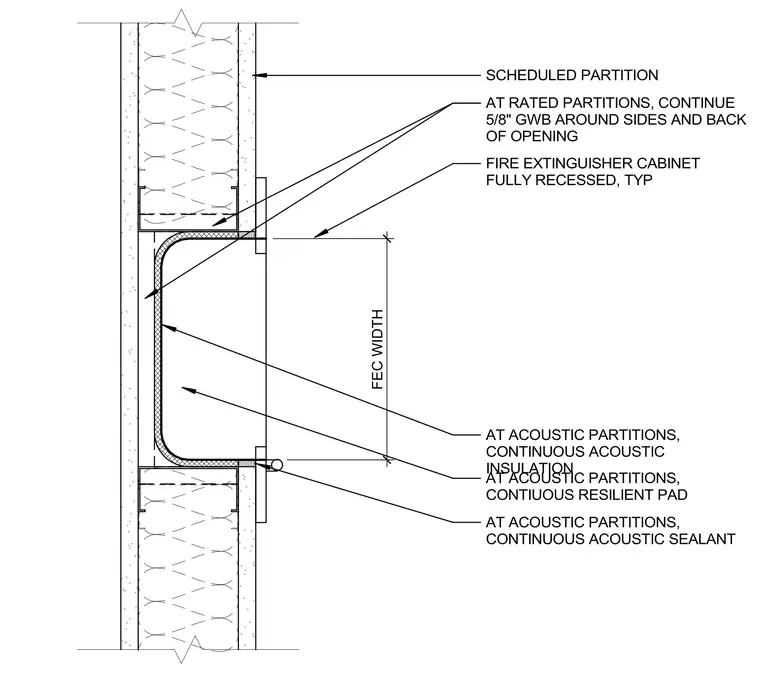

A fully recessed fire extinguisher cabinet is set into a scheduled gypsum wallboard partition with metal studs. At rated partitions, five-eighths-inch gypsum wallboard continues around the sides and back of the opening. At acoustic partitions, continuous acoustic insulation fills the cavity alongside continuous resilient pads and continuous acoustic sealant to maintain assembly ratings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
