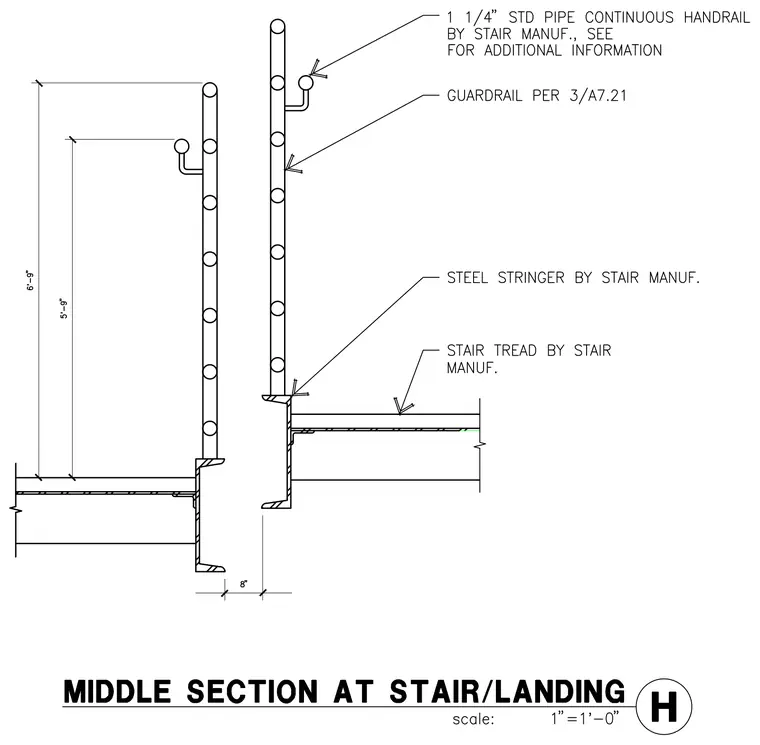

A continuous one and one-quarter inch standard pipe handrail mounts to the guardrail assembly by the stair manufacturer, requiring additional coordination per the stair details. The guardrail aligns per detail three on sheet A7.21. A steel stringer and stair tread, both provided by the stair manufacturer, support the landing construction. Vertical dimensions indicate a five-foot nine-inch clearance to the handrail center and a six-foot nine-inch overall height.
