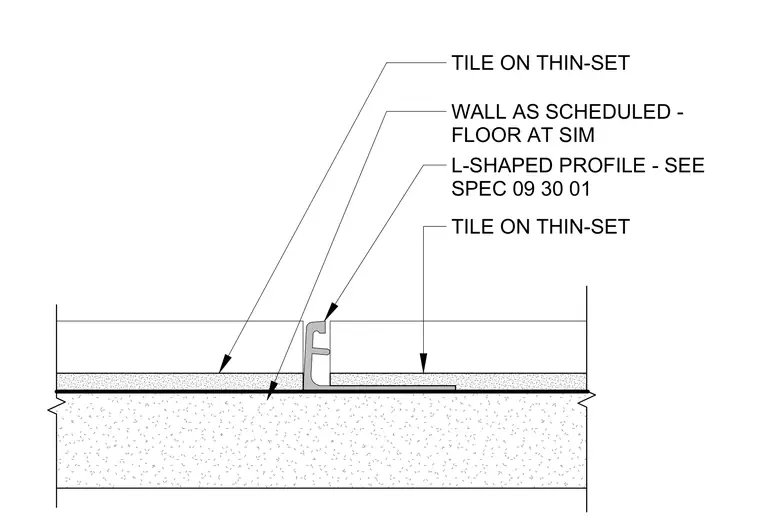

An L-shaped metal trim profile sits between adjacent tile finishes set in thin-set mortar. The wall construction is as scheduled, with the floor condition set similar to the detail. The metal profile protects the exposed tile edges and provides a clean transition line.
TILE ON THIN-SET L-SHAPED PROFILE - SEE SPEC 09 30 01 WALL AS SCHEDULED - FLOOR AT SIM TILE ON THIN-SET
