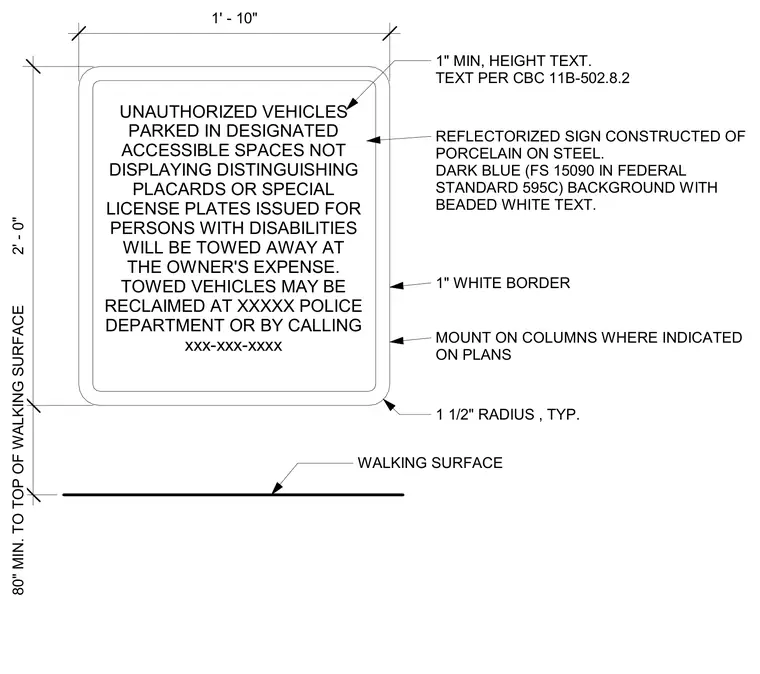

An accessible parking sign is constructed from porcelain on steel with a dark blue background and beaded white text adhering to California Building Code requirements. The sign features a one-inch white border, rounded corners with a one-and-a-half-inch typical radius, and measures two feet high by one foot ten inches wide. It requires a minimum height of eighty inches from the walking surface to the bottom of the sign and mounts directly onto columns as indicated on the architectural plans.
UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT THE OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT XXXXX POLICE DEPARTMENT OR BY CALLING xxx-xxx-xxxx 80" MIN. TO TOP OF WALKING SURFACE 2' - 0" 1' - 10" 1 1/2" RADIUS , TYP. WALKING SURFACE 1" MIN, HEIGHT TEXT. TEXT PER CBC 11B-502.8.2 REFLECTORIZED SIGN CONSTRUCTED OF PORCELAIN ON STEEL. DARK BLUE (FS 15090 IN FEDERAL STANDARD 595C) BACKGROUND WITH BEADED WHITE TEXT. 1" WHITE BORDER MOUNT ON COLUMNS WHERE INDICATED ON PLANS
