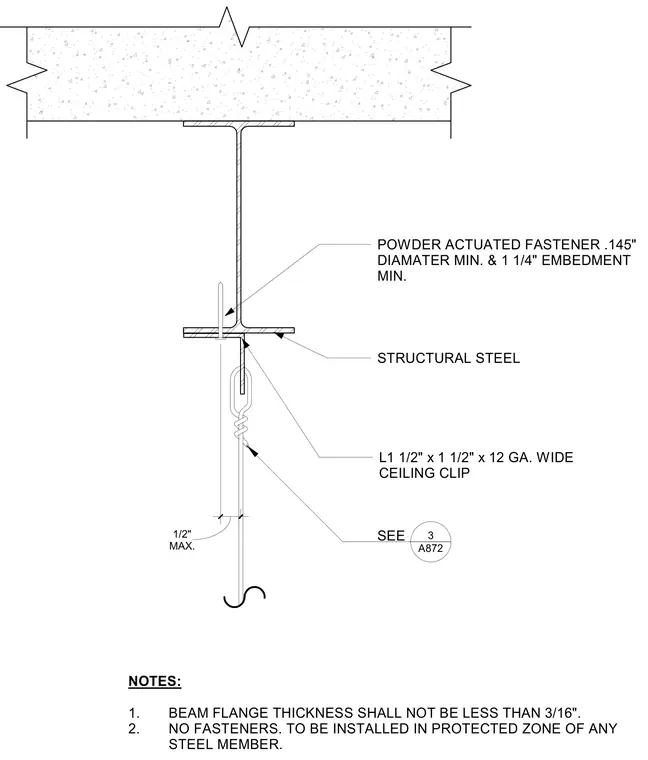

A suspended ceiling hanger wire connects to a structural steel beam flange using a wide ceiling clip fastened directly to the underside of the flange. The 1 1/2-inch by 1 1/2-inch by 12-gauge wide ceiling clip is anchored to the steel beam with a powder-actuated fastener measuring a minimum of .145 inches in diameter with a minimum 1 1/4-inch embedment. The supporting beam flange thickness must not be less than 3/16 inch. No fasteners are to be installed in the protected zone of any steel member.
STRUCTURAL STEEL L1 1/2" x 1 1/2" x 12 GA. WIDE CEILING CLIP A872 3 SEE POWDER ACTUATED FASTENER .145" DIAMATER MIN. & 1 1/4" EMBEDMENT MIN. NOTES: 1. BEAM FLANGE THICKNESS SHALL NOT BE LESS THAN 3/16". 2. NO FASTENERS. TO BE INSTALLED IN PROTECTED ZONE OF ANY STEEL MEMBER. MAX. 1/2"
