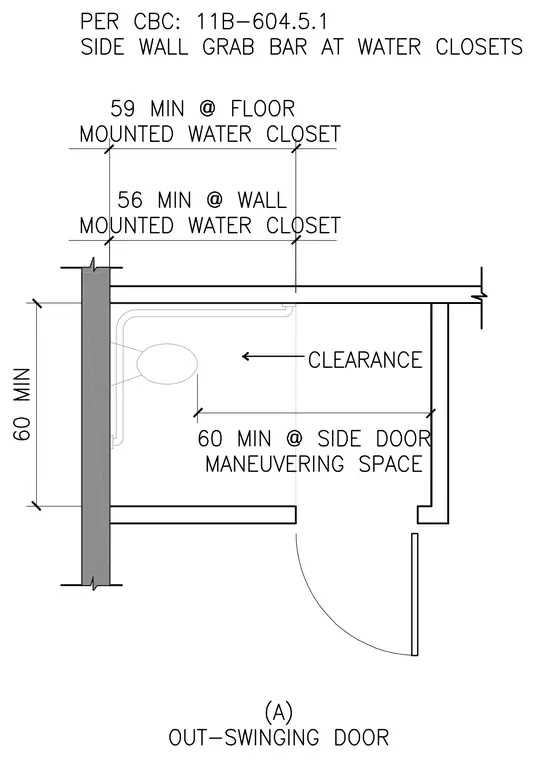

An L-shaped grab bar is mounted on the side wall adjacent to the water closet, complying with California Building Code section 11B-604.5.1. The plan indicates a minimum distance of fifty-nine inches from the rear wall for floor-mounted water closets and fifty-six inches for wall-mounted water closets. A sixty-inch minimum clearance space is provided from the side door maneuvering space. The compartment features an out-swinging door.
