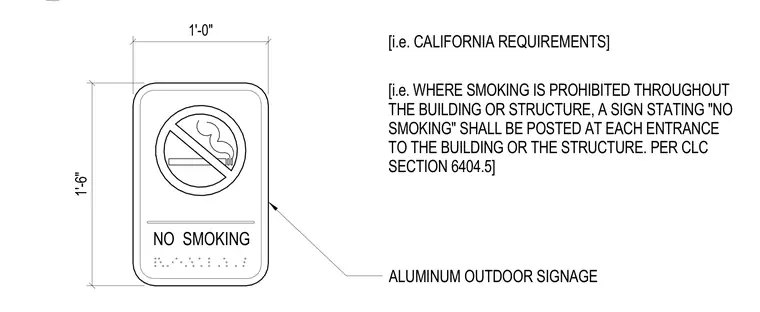

An aluminum outdoor no smoking sign measuring one foot six inches high by one foot zero inches wide is mounted at building entrances. The sign includes tactile braille and complies with California requirements and California Labor Code section 6404.5.
1'-6" 1'-0" [i.e. WHERE SMOKING IS PROHIBITED THROUGHOUT THE BUILDING OR STRUCTURE, A SIGN STATING "NO SMOKING" SHALL BE POSTED AT EACH ENTRANCE TO THE BUILDING OR THE STRUCTURE. PER CLC SECTION 6404.5] ALUMINUM OUTDOOR SIGNAGE [i.e. CALIFORNIA REQUIREMENTS] NO SMOKING
