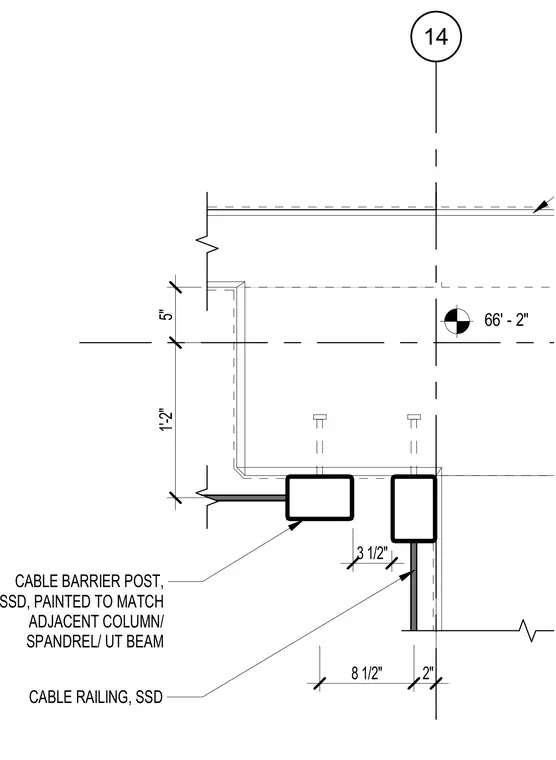

A stainless steel cable barrier post is mounted to a concrete spandrel beam with a three-quarter-inch cable railing. The painted finish matches the adjacent column, spandrel, and utility beam. Dimensions indicate offsets of two inches and eight-and-a-half inches for the post layout, with vertical increments of one foot two inches and five inches.
CONCRETE SPANDREL WITH 3/4" 14 CABLE RAILING, SSD 66' - 2" 5" 1'-2" CABLE BARRIER POST, SSD, PAINTED TO MATCH ADJACENT COLUMN/ SPANDREL/ UT BEAM 8 1/2" 2" 3 1/2"
