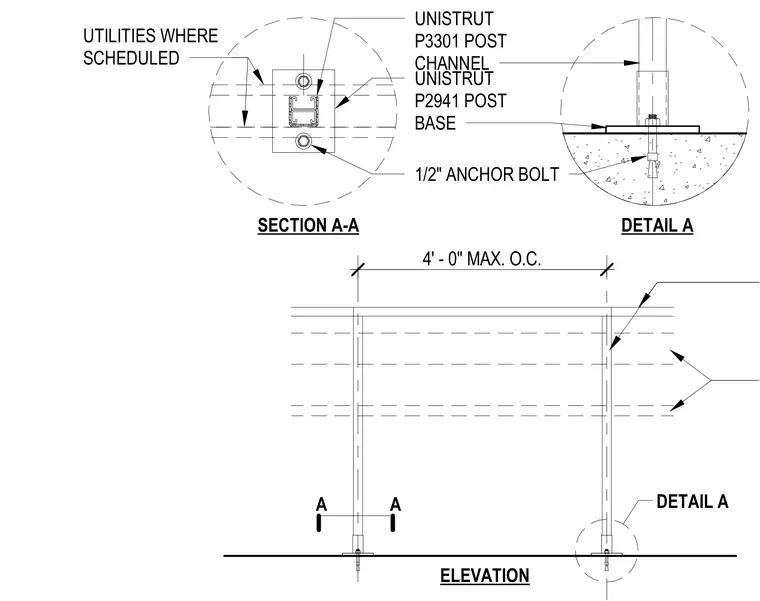

A Unistrut P3301 post channel is secured to a Unistrut P2941 post base anchored to concrete with one-half-inch anchor bolts. Utilities are routed where scheduled with supports spaced at four feet zero inches maximum on center.
UNISTRUT P2941 POST BASE UNISTRUT P3301 POST CHANNEL 1/2" ANCHOR BOLT DETAIL A DETAIL A 4' - 0" MAX. O.C. UTILITIES WHERE SCHEDULED SECTION A-A A A ELEVATION
