A-XKC8M — Cabinet Door Hinge at Scheduled Partition

Architectural · A-XKC8M

Cabinet Door Hinge at Scheduled Partition

Materials

Steel Timber / Wood

Elements

Partitions Doors Millwork / Casework

About this detail

A plastic-laminate-clad architectural cabinet door attaches via a soft-closing push-open hinge to a steel stud partition framing assembly. The partition framing is detailed with steel studs as scheduled on the architectural drawings.

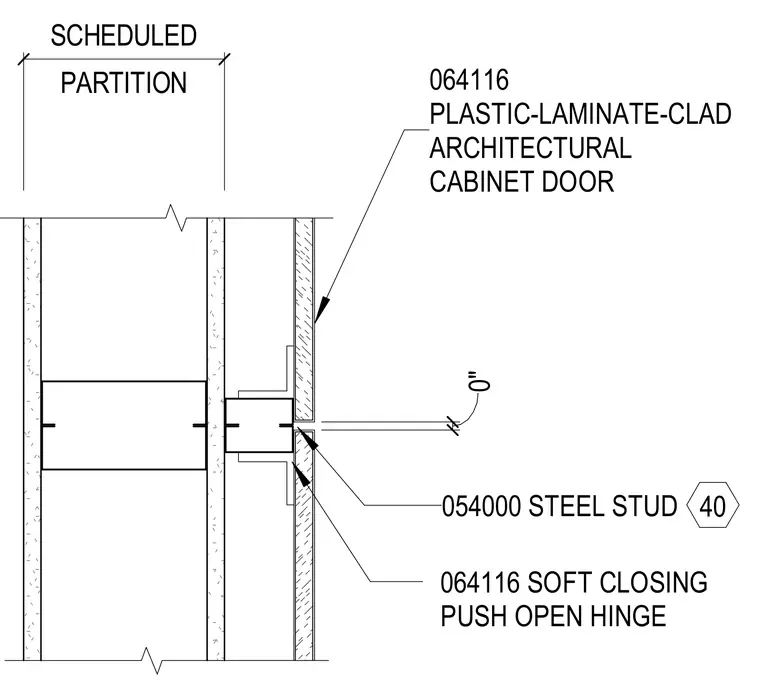

054000 STEEL STUD 064116 PLASTIC-LAMINATE-CLAD ARCHITECTURAL CABINET DOOR 064116 SOFT CLOSING PUSH OPEN HINGE 0" PARTITION SCHEDULED 40
