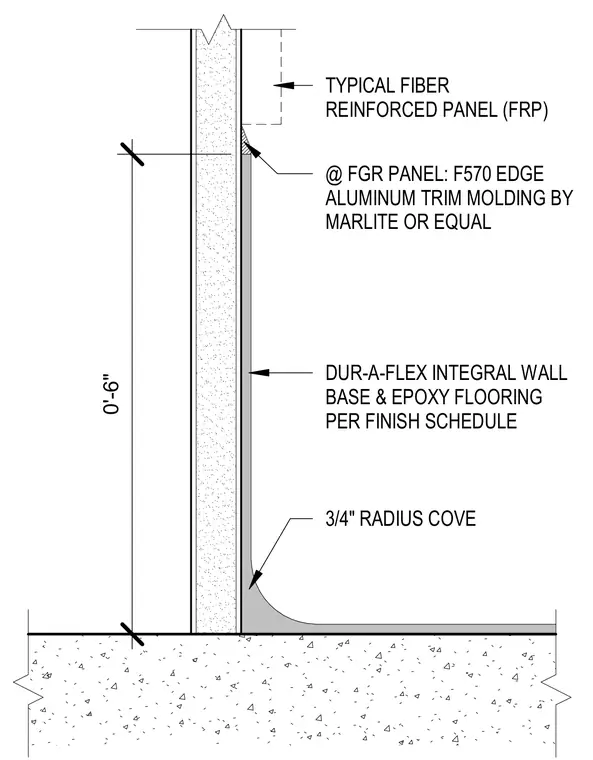

An epoxy flooring system turns up the wall with a three-quarter-inch radius cove to form a six-inch integral wall base. Fiber-reinforced plastic panels meet the top of the epoxy base, finished with an F570 edge aluminum trim molding.
DUR-A-FLEX INTEGRAL WALL BASE & EPOXY FLOORING PER FINISH SCHEDULE 3/4" RADIUS COVE TYPICAL FIBER REINFORCED PANEL (FRP) @ FGR PANEL: F570 EDGE ALUMINUM TRIM MOLDING BY MARLITE OR EQUAL 0'-6"
