The assembly comprises a recessed cabinet box constructed from one-half inch thick material with plastic laminate finish on all exposed surfaces. A three-eighths inch thick bronze ledge with a polished front edge caps the top, accompanied by a three-sixteenths inch thick bronze door on an oil-rubbed bronze piano hinge. Dimensions and locations are verified per elevation.

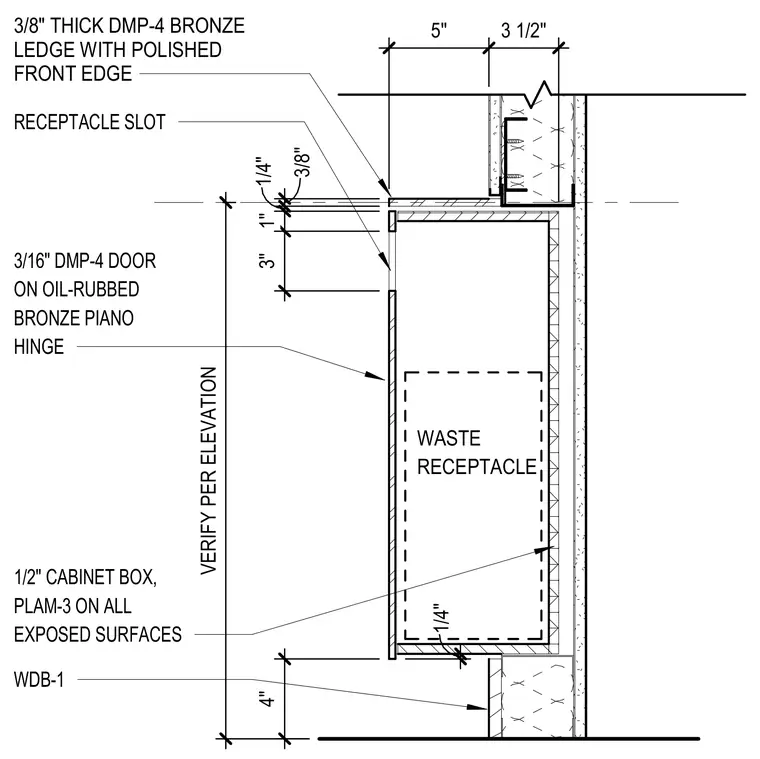

3 / 8 " 1 / 4 " 1 " 3 " 1 / 4 " 4 " V E R I F Y P E R E L E V A T I O N WASTE RECEPTACLE 3/8" THICK DMP-4 BRONZE LEDGE WITH POLISHED FRONT EDGE 5 " 3 1 / 2 " 3 / 1 6 " D M P - 4 D O O R O N O I L - R U B B E D B R O N Z E P I A N O H I N G E R E C E P T A C L E S L O T 1 / 2 " C A B I N E T B O X , P L A M - 3 O N A L L E X P O S E D S U R F A C E S W D B - 1
