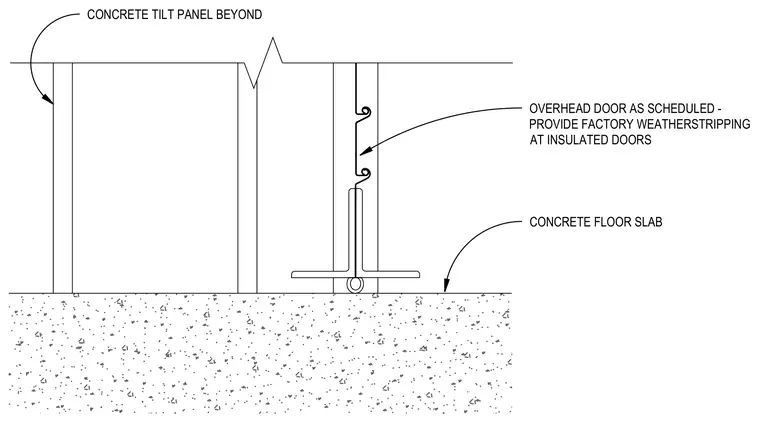

An overhead door as scheduled bears directly on a concrete floor slab, with a concrete tilt-up panel shown beyond. Factory weatherstripping is provided at insulated doors to seal the bottom gap against the floor. A threshold seal or guide is positioned at the base of the door assembly.
OVERHEAD DOOR AS SCHEDULED - PROVIDE FACTORY WEATHERSTRIPPING AT INSULATED DOORS CONCRETE FLOOR SLAB CONCRETE TILT PANEL BEYOND
