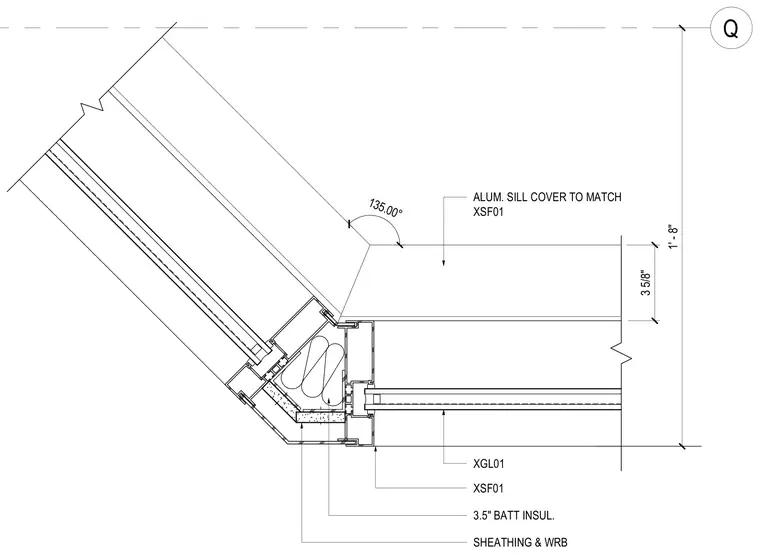

An aluminum sill cover matches storefront type XSF01 at a 135-degree inside corner. The framing assembly includes glass type XGL01, three and a half inch batt insulation, and exterior sheathing with a weather-resistant barrier.
Q XSF01 XGL01 SHEATHING & WRB ALUM. SILL COVER TO MATCH XSF01 135.00° 1' - 8" 3.5" BATT INSUL. 3 5/8"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
