Architectural · A-XJMB7

Acoustic Partition Wall Section at Fitness Studio

Materials

Gypsum / Drywall

Elements

Walls Partitions Ceilings Floors / Slabs Decks

Connections

Shear Stud / Composite Deck Attachment

About this detail

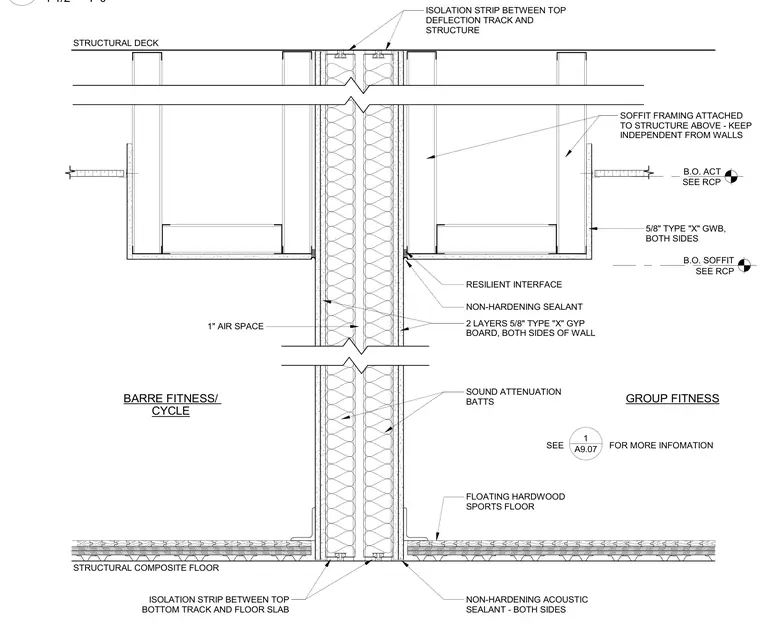

This wall section details an acoustic partition assembly between fitness and cycle studios, anchored to a structural deck above and a structural composite floor below. The double-stud wall incorporates a one-inch air space and sound attenuation batts within the stud cavities, faced with two layers of five-eighths-inch type X gypsum board on both sides. Isolation strips are detailed between the top deflection track and the structure, as well as between the bottom track and the floor slab, sealed with non-hardening acoustic sealant on both sides. Independent soffit framing hangs from the structure above and terminates at a resilient interface with the wall, maintaining acoustic separation. A floating hardwood sports floor sits atop the structural composite floor slab with perimeter isolation.
