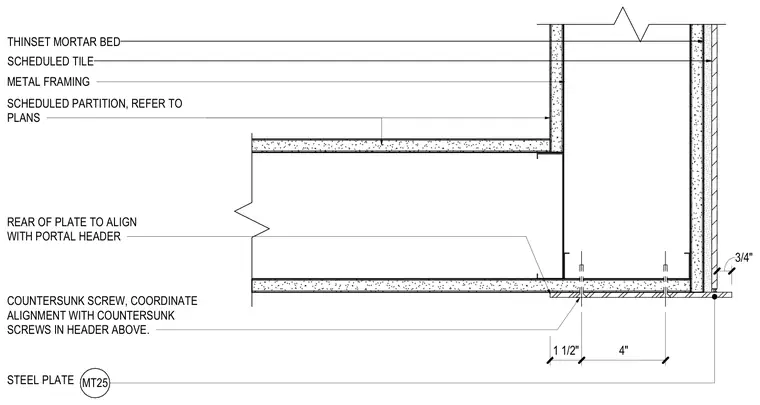

A scheduled partition framing member connects to a portal header utilizing a three-quarter-inch MT25 steel plate secured with countersunk screws. The assembly is aligned with the rear of the plate matching the portal header above, spaced one and one-half inches and four inches respectively. Metal framing supports scheduled tile set in a thinset mortar bed over the partition finish.
METAL FRAMING 3/4" MT25 STEEL PLATE SCHEDULED TILE THINSET MORTAR BED COUNTERSUNK SCREW, COORDINATE ALIGNMENT WITH COUNTERSUNK SCREWS IN HEADER ABOVE. SCHEDULED PARTITION, REFER TO PLANS 1 1/2" 4" REAR OF PLATE TO ALIGN WITH PORTAL HEADER
