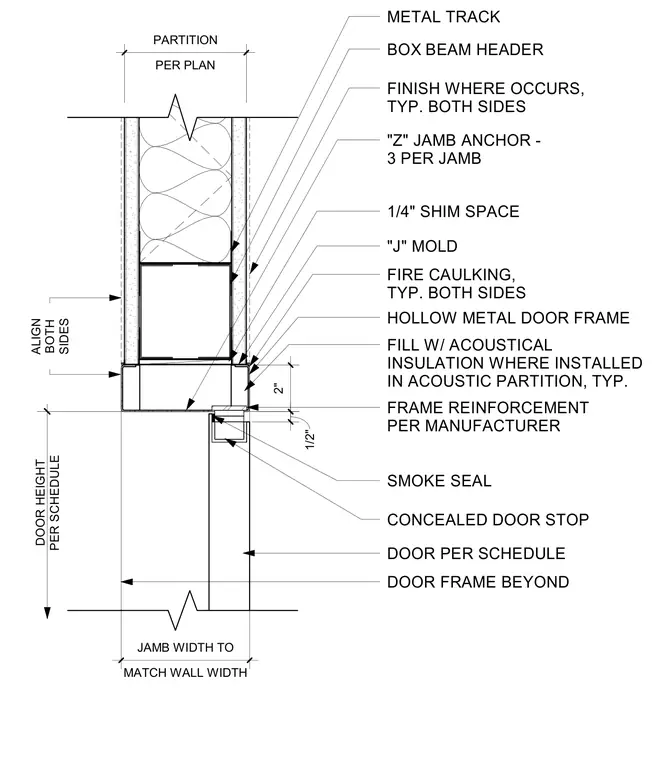

This hollow metal door head detail features a hollow metal door frame secured to a metal stud partition with a box beam header. Three Z-jamb anchors per jamb secure the frame with a one-quarter-inch shim space, finished with fire caulking and J-mold on both sides. The frame is filled with acoustical insulation where installed in an acoustic partition. A concealed door stop, smoke seal, and frame reinforcement per manufacturer complete the assembly above the door per schedule.
PER PLAN PARTITION MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT PER SCHEDULE METAL TRACK BOX BEAM HEADER FINISH WHERE OCCURS, TYP. BOTH SIDES "Z" JAMB ANCHOR - 3 PER JAMB HOLLOW METAL DOOR FRAME FILL W/ ACOUSTICAL INSULATION WHERE INSTALLED IN ACOUSTIC PARTITION, TYP. DOOR PER SCHEDULE DOOR FRAME BEYOND CONCEALED DOOR STOP ALIGN BOTH SIDES "J" MOLD 2" FRAME REINFORCEMENT PER MANUFACTURER FIRE CAULKING, TYP. BOTH SIDES SMOKE SEAL 1/2" 1/4" SHIM SPACE
