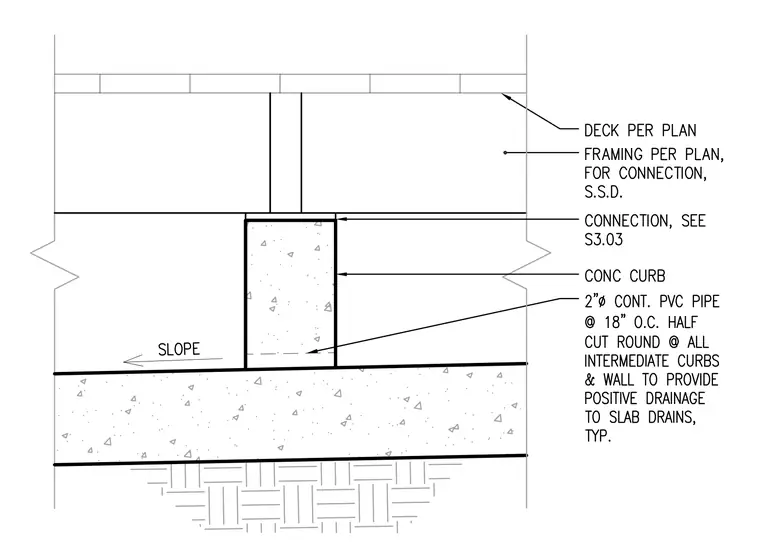

A concrete curb bears on a sloped concrete slab with a continuous two-inch diameter PVC pipe placed eighteen inches on center and half cut round at all intermediate curbs and walls to provide positive drainage to slab drains. The curb connects to overhead framing per plan with structural steel deck above. A connection per structural drawing S3.03 secures the curb to the framing.
