Architectural · A-XJDN8

Main Entrance Canopy, Cornice, and Door Details

About this detail

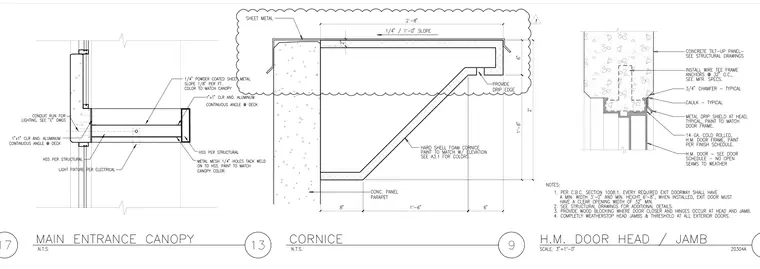

Three distinct architectural details comprising a main entrance canopy, a cornice, and a hollow metal door head and jamb. The canopy detail features hollow structural section framing supporting a one-fourth-inch powder coated sheet metal assembly with a slope of one-eighth inch per foot, continuous clear anodized aluminum angles, metal mesh with one-fourth-inch holes tack-welded to the hollow structural section, and an integrated light fixture and conduit run. The cornice detail includes a hard shell foam cornice attached to a concrete panel parapet, featuring a sheet metal top cap sloped one-fourth inch per foot, an extruded drip edge, and an overall width of two feet eight inches. The hollow metal door head and jamb detail consists of a concrete tilt-up panel with wire tee frame anchors at thirty-two inches on center, a three-fourth-inch typical chamfer, perimeter caulking, a metal drip shield at the head, a fourteen-gauge cold rolled hollow metal door frame, and wood blocking where door closer and hinges occur.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
