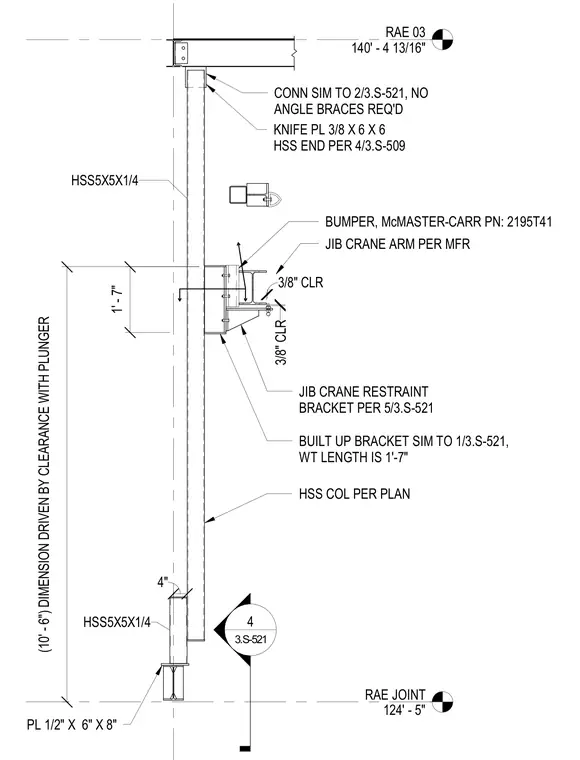

A jib crane restraint assembly utilizing an HSS5x5x1/4 hollow structural section column. The connection features a knife plate measuring 3/8" x 6" x 6" at the HSS end and a built-up bracket with a WT length of 1'-7", similar to detail 1/3.S-521. A 3/8" clearance is maintained around the jib crane arm, which includes a McMaster-Carr PN: 2195T41 bumper. The assembly is supported at the base by a 1/2" x 6" x 8" base plate with a 10'-6" dimension driven by clearance with the plunger.
RAE JOINT 124' - 5" RAE 03 140' - 4 13/16" BUMPER, McMASTER-CARR PN: 2195T41 4 3.S-521 BUILT UP BRACKET SIM TO 1/3.S-521, WT LENGTH IS 1'-7" HSS COL PER PLAN CONN SIM TO 2/3.S-521, NO ANGLE BRACES REQ'D 1' - 7" (10' - 6") DIMENSION DRIVEN BY CLEARANCE WITH PLUNGER JIB CRANE ARM PER MFR JIB CRANE RESTRAINT BRACKET PER 5/3.S-521 3/8" CLR 3/8" CLR 4" PL 1/2" X 6" X 8" KNIFE PL 3/8 X 6 X 6 HSS END PER 4/3.S-509 HSS5X5X1/4 HSS5X5X1/4
