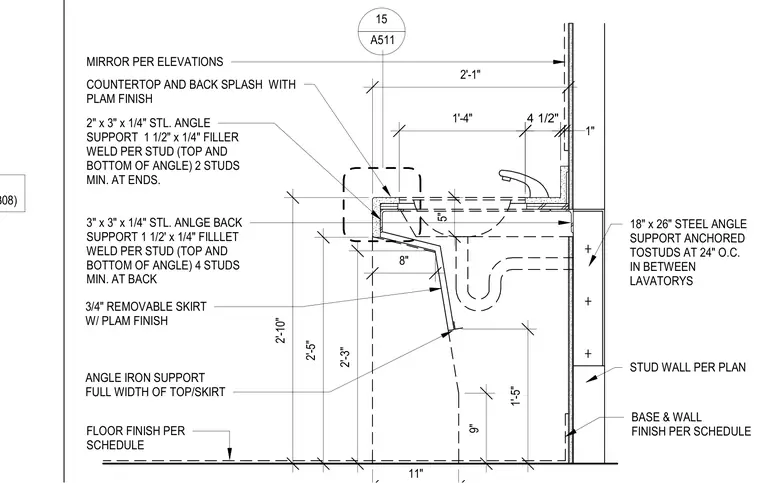

This architectural detail shows a wall-mounted lavatory vanity with a plastic laminate finish countertop, backsplash, and a three-quarter-inch removable skirt. The countertop is supported by a two-by-three-by-one-quarter-inch steel angle welded with one-and-one-half-inch by one-quarter-inch fillet welds per stud, requiring two studs minimum at the ends. A three-by-three-by-one-quarter-inch steel angle back support is attached to the backup stud wall with four studs minimum at the back. Additional support is provided by an eighteen-by-twenty-six-inch steel angle anchored to the studs at twenty-four inches on center in between lavatories. Wall and floor finishes are scheduled separately, and a mirror is placed per elevations above the backsplash.
SYSTEM PER (ICC ESR-1308) 8" 5" 11" 9" 1'-5" 2'-3" 2'-5" 2'-10" 1'-4" 4 1/2" 1" 2'-1" FLOOR FINISH PER SCHEDULE 3" x 3" x 1/4" STL. ANLGE BACK SUPPORT 1 1/2' x 1/4" FILLLET WELD PER STUD (TOP AND BOTTOM OF ANGLE) 4 STUDS MIN. AT BACK 2" x 3" x 1/4" STL. ANGLE SUPPORT 1 1/2" x 1/4" FILLER WELD PER STUD (TOP AND BOTTOM OF ANGLE) 2 STUDS MIN. AT ENDS. COUNTERTOP AND BACK SPLASH WITH PLAM FINISH MIRROR PER ELEVATIONS 3/4" REMOVABLE SKIRT W/ PLAM FINISH ANGLE IRON SUPPORT FULL WIDTH OF TOP/SKIRT BASE & WALL FINISH PER SCHEDULE STUD WALL PER PLAN 18" x 26" STEEL ANGLE SUPPORT ANCHORED TOSTUDS AT 24" O.C. IN BETWEEN LAVATORYS A511 15
