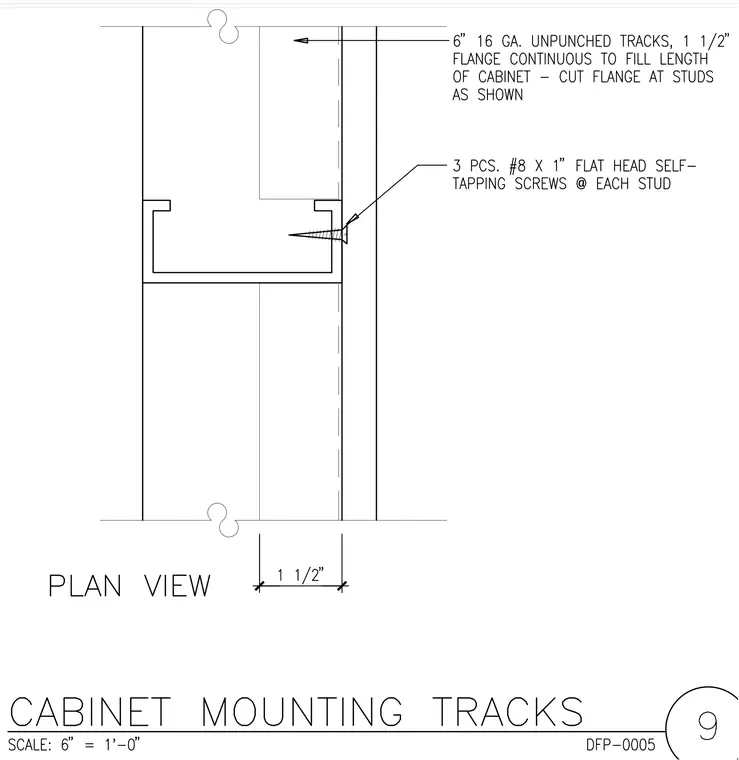

Six-inch sixteen-gauge unpunched tracks with one and a half-inch flanges run continuously to fill the length of the cabinet, with flanges cut at studs as shown. Three number eight by one-inch flat head self-tapping screws fasten each stud to the assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
