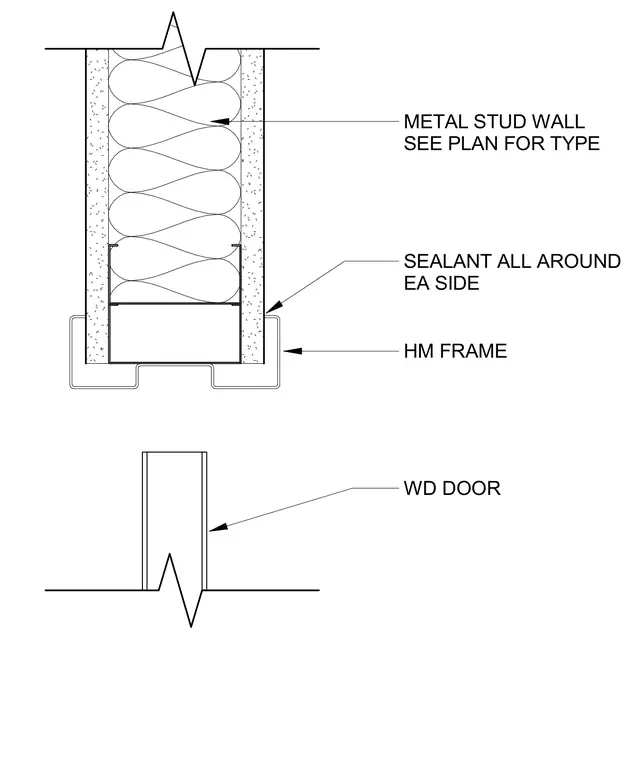

A hollow metal frame wraps the jamb of a metal stud wall, sized per plan. A wood door seats within the frame opening. Sealant is applied all around each side between the frame and the wall finish.
