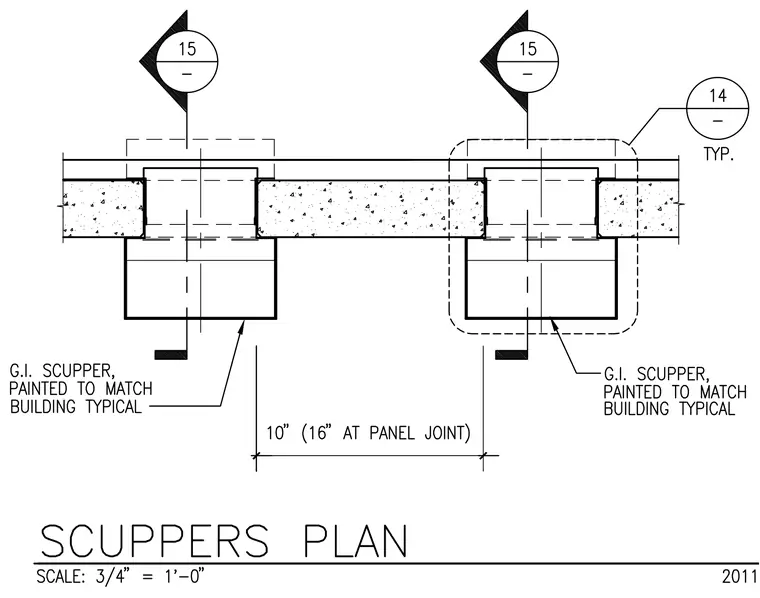

Galvanized iron scuppers penetrate the concrete wall and are painted to match the building typical. The clear spacing between scuppers is ten inches, increasing to sixteen inches at panel joints. Dashed detail boundaries enclose the scupper assemblies, with reference callouts pointing to related drawings.
